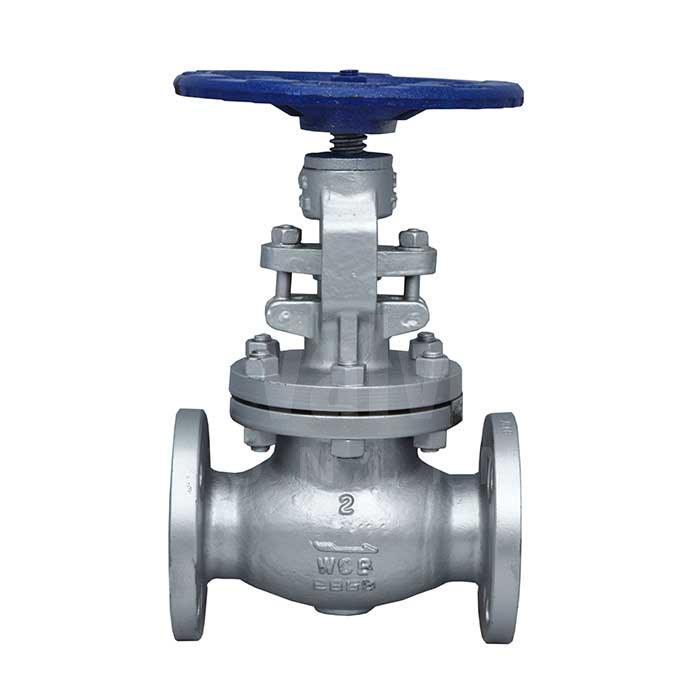

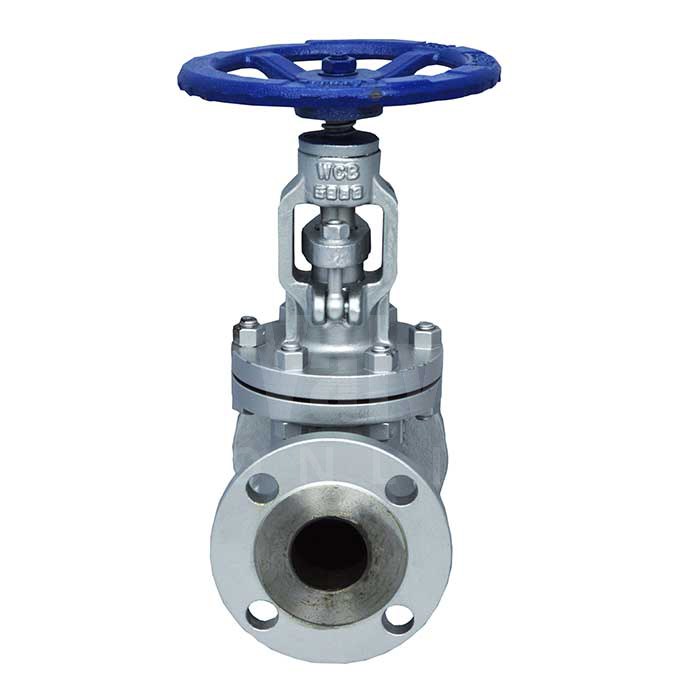

API 600 ANSI Class 300 Cast Steel Globe Valve

Flanged ANSI 300 heavy duty globe valve to API and BS standards.

Designed to BS 1873 / API 600 and pressure tested in accordance with API 598/EN12266-1. This heavy duty flanged globe valve offers durability throughout a wide range of industrial applications, boiler plant and rugged environments. Handwheel operated and offered in ANSI 300, offering maximum service life.

The seat Ring and Wedge Disc are ground and lapped to a mirror finish that provides matching sealing surfaces. A plug type disc is supplied as standard with flat and regulating type discs available on request. Heat treated stainless steel STEM with precision machined ACME threads for long lasting service. Machined Backseat Bushing to provide a secondary metal-metal stem seal. Rising Stem gives open and closed indication of position with large diameter Handwheel for easy operation. Austenitic ductile iron YOKE SLEEVE gives resistance to heat, corrosion and wear. Two piece self-aligning GLAND BUSHING and GLAND FLANGE to prevent damage with high strength alloy steel STUD BOLTS.

Cast Steel Globe Valve API 600 ANSI Class 300 Datasheet
