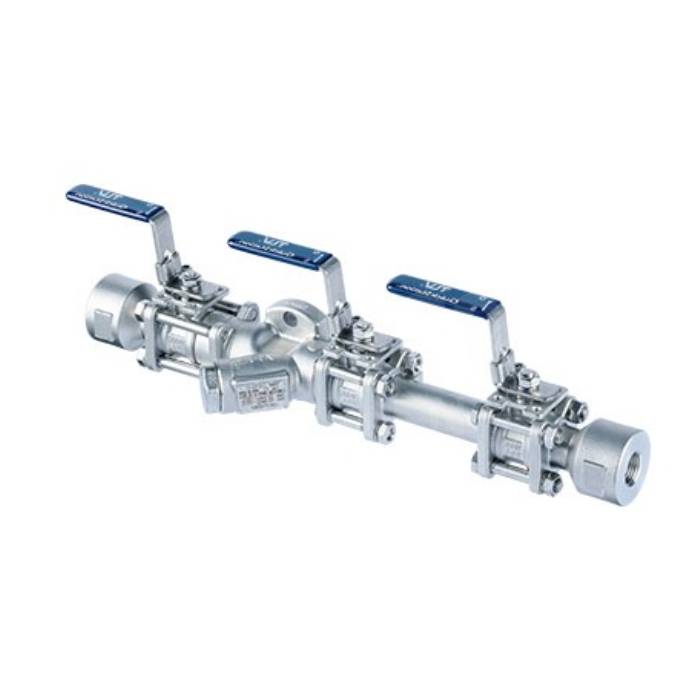

TLV QS10-D Trapping Station with Double Isolation

The QS10-D TLV Steam Trapping Station is equipped with two upstream and one downstream lockable isolation valves, it also has a strainer fitted which prevents equipment damage from particles and rust, commonly found in pipelines, and a Non-Return Valve (Check Valve) that prevents backflow.

The trapping station accommodates steam traps for condensate drainage for a wide range of applications, including process use and steam mains. The main use of this unit is for safe and quick trap removal and replacement in minutes. The universal 2 bolt connector allows float and thermodynamic steam traps to be fitted. Because the mounting is universal, this allows not just TLV to be installed, but other trap manufacturers units.

For more technical information see manufacturers Datasheet.

Can also be supplied with multiple piping arrangements and optional blowdown valve. (Please speak to our sales team).

TLV QS10-D Compact Double Trapping Station Datasheet
