TLV

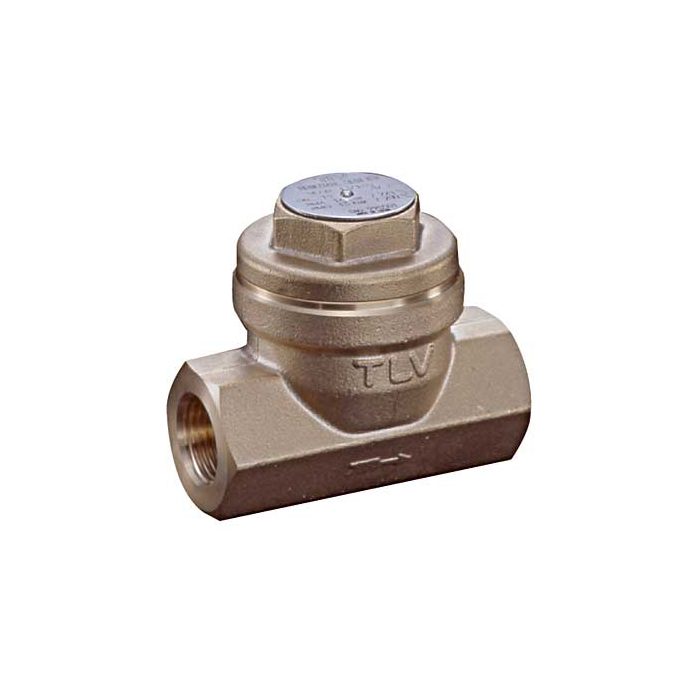

TLV LV13 Thermostatic (Balanced Pressure) Steam Trap
SKU ST5328
Sizes: 1/2", 3/4"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Thermostatic (Balanced Pressure) Steam Trap
- Brass body
- Straight through or 90° angled bodies
- Screwed BSP end connection
- Sizes 1/2" & 3/4"
- Built in strainer screen
- Max differential pressure: 13 BarG
- Max temperature: 200°C
Description
The LV13 Thermostatic steam trap from TLV employs a built in strainer for equipment protection and a thermo-liquid filled X-element thermostatic unit. The x-element discharges cold condensate, cold and hot air to be discharged encouraging the inflow of steam and reducing start up times as a result.
Maximum allowable differential pressure of 13 BarG and a maximum operating temperature of 200°C. Available in Brass body sizes ½” and ¾” BSP threaded. Suitable for duties with discharge 100 to 700kg/h is required (actual figure depends on differential pressure across the steam trap).
TLV LV13L Thermostatic (Balanced Pressure) Steam Trap (90° angled body) Datasheet
TLV LV13N Thermostatic (Balanced Pressure) Steam Trap (straight body) Datasheet
Technical specification
- Category
- Thermostatic
- Function/Use
- Tracing Lines
- Capacity
- Up to 760kg/h
- End Connection
- Screwed
- Body Material
- Brass
- Size
- 1/2", 3/4"
