TLV

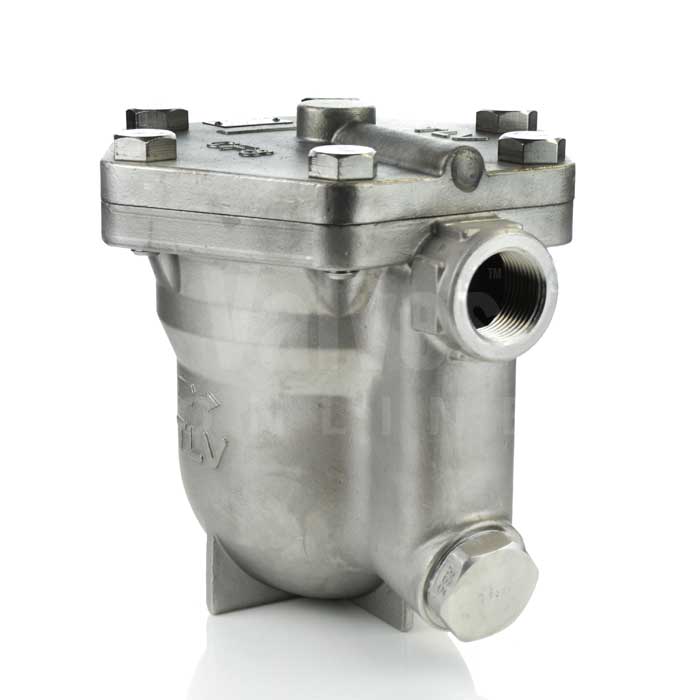

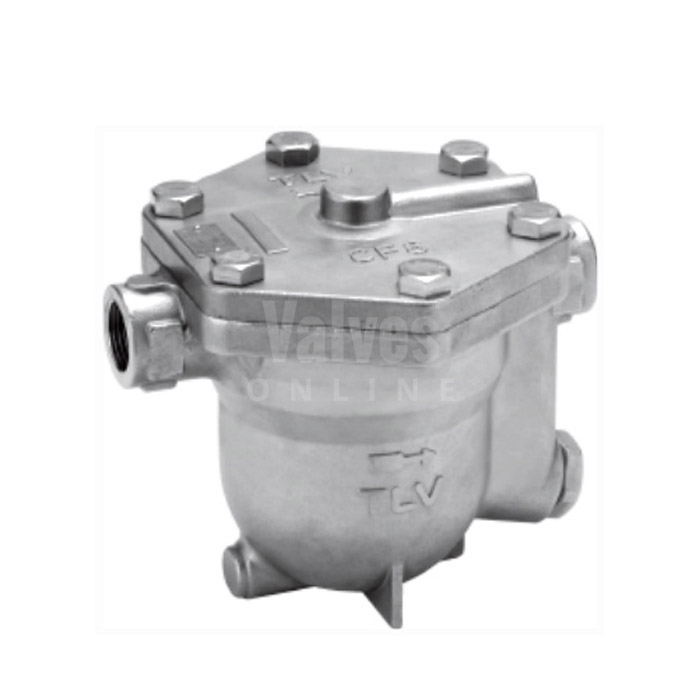

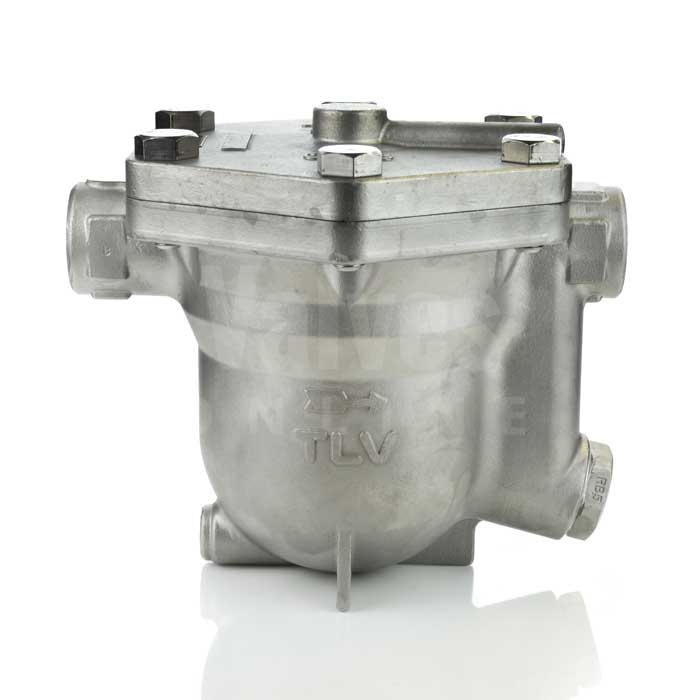

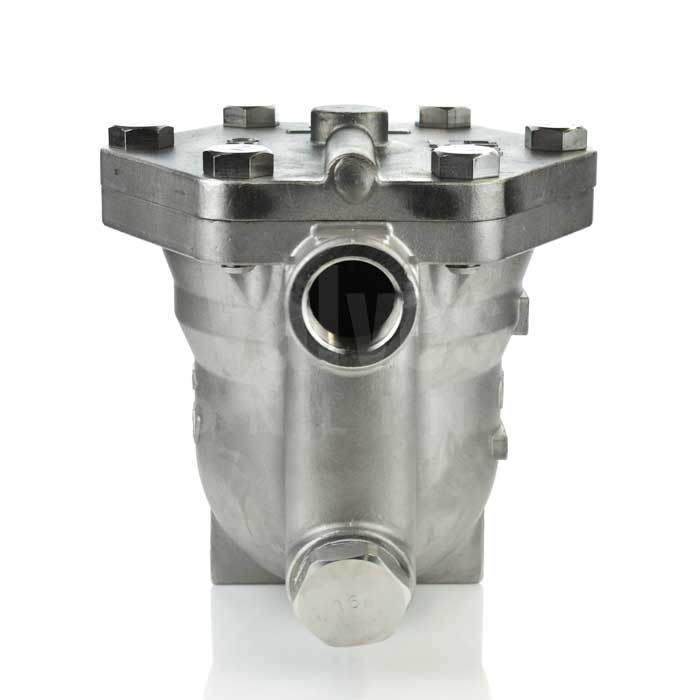

TLV J6SX Screwed Stainless Steel Free Float Steam Trap
SKU ST5314
Sizes: 1/2", 3/4", 1"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Stainless Steel Free Float Steam Trap
- Stainless Steel body
- BSP threaded Female connection
- Sizes: ½” to 1”
- Differential pressures up to 2, 5, 10, 16 and 21 BarG
- Discharge Capacities up to 3500kg/h
- Built in Strainer and Thermostatic Air Vent
Description
The J6SX is a reliable and durable steam trap with tight shut-off for use on medium size process equipment. The precision ground self-modulating free float provides; continuous low velocity condensate discharge even with varying process loads, constant water seal and steam tight sealing even under no load conditions, reduced wear and a long maintenance free life.
The design of the J6SX allows easy inline access to the internal components. The integral thermostatic (x-element) air vent automatically vents air from the system until close to steam pressures are present and the integral strainer ensures and extended trouble free operational life.
Suitable for condensate loads up to 3500kg/h, and differential pressures up to 2, 5, 10, 16 and 21 BarG. The J6SX features an all Stainless Steel construction for durability and is available with BSP screwed female end connections. The maximum operation pressure is 21 BarG and the maximum operating temperature is 220°C.
TLV J6SX Screwed Stainless Steel Free Float Steam Trap Datasheet
Technical specification
- Category
- Free Float
- Function/Use
- Process
- Capacity
- 1060kg/h to 3500kg/h
- End Connection
- Screwed
- Body Material
- Stainless Steel
- Size
- 1/2", 3/4", 1"
