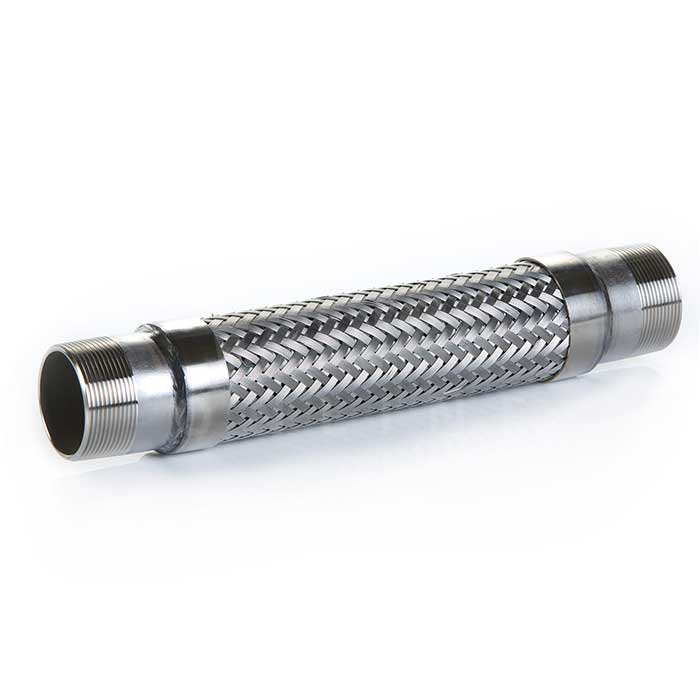

Stainless Steel Screwed Pump Connector - WRAS Approved

Screwed stainless steel pump connector consisting of stainless steel convoluted hose (grade 321), complete with stainless steel outer protective braid (grade 304). Fitted with fixed stainless-steel B.S.P.T male end connections (grade 316).

Stainless Steel pump connectors are designed to reduce noise and vibration from pumps and reciprocating machinery. They are suitable for use on chilled water, L.T.H.W, M.T.H.W and steam.

Maximum working temperature 300°C. Maximum working pressure 16 Bar. Stainless steel pump connectors should not be used at both their maximum working temperature and pressure respectively. Maximum test pressure = 1.5 x working pressure or 1.5 x flange rating, whichever the lower

Lagging - Is now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems. Please ask for more information

Stainless Steel Screwed Pump Connector - WRAS Approved Datasheet
