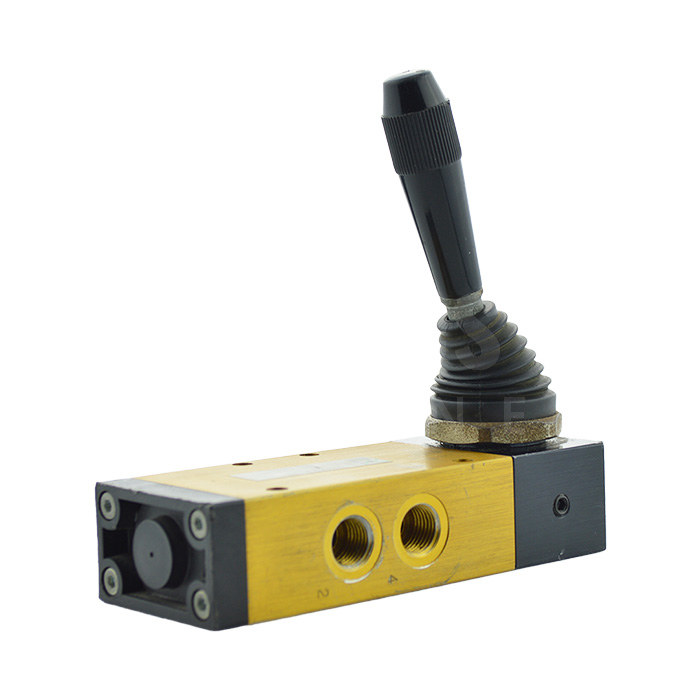

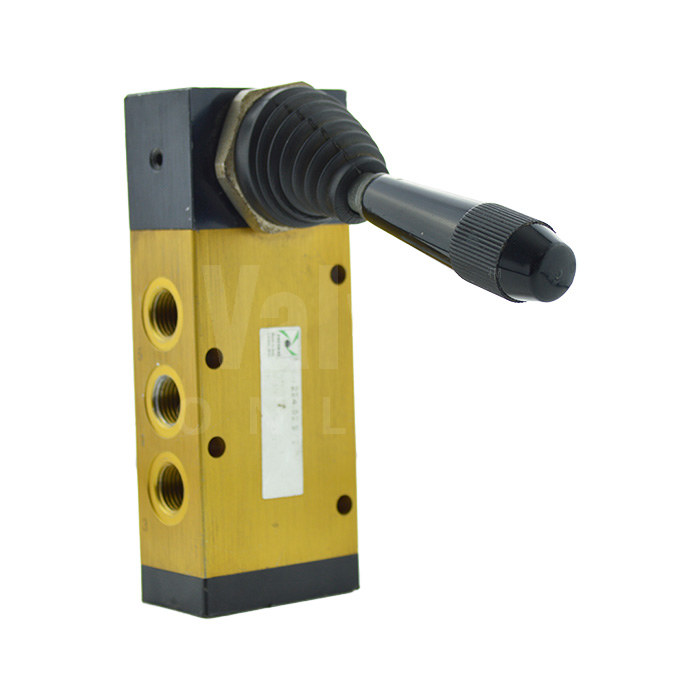

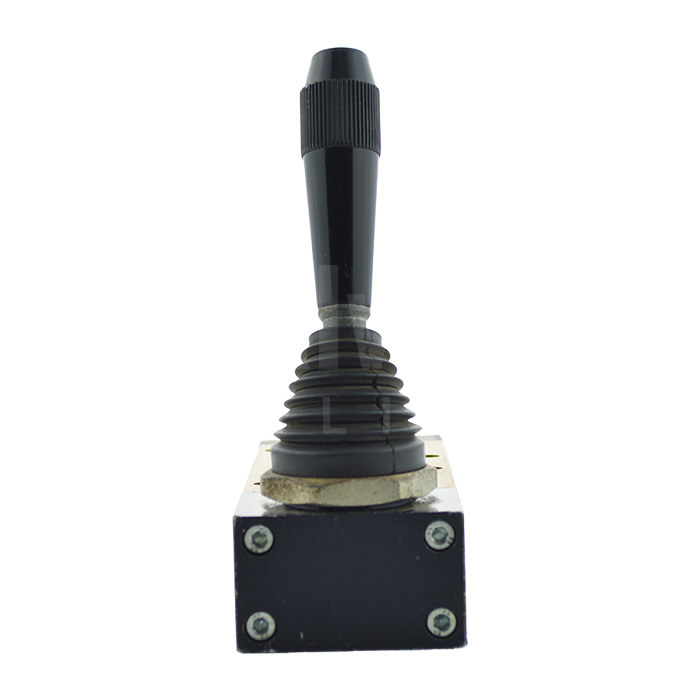

Images are illustrative and may not show every size or variation.
Pneumax
Series 212 Lateral Lever Spring Return & 2 Position, 3/2 & 5/2 - 1/2"
SKU PV5691
from£184.00ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumax Series 212
- 3/2 or 5/2
- Spring Return & Stable 2 Position versions
- Aluminium body
- Black Lever
- Max Working Pressure: 10 bar
- Flow Rate: 3500 Nl/min
- 1/2" Ported
- Orifice size: 15mm
Description
Pneumax Series 212 Hand operated lever air valve that operates via a lateral lever. Available in 3/2 or 5/2 configuration and either Spring Return or 2 Postion with 1/2" connections.
The Spring Return lateral lever valve operates by pushing the lever in one direction and spring return upon releasing the lever.
The 2 position mechanical lever air valve operates by pushing the lateral lever in one direction and to return by pulling the lever back to the original position.
Pneumax Series 212 Lateral Lever Pneumatic Valve Datasheet
Technical specification
- Operator
- Lever
- Position
- 3/2, 5/2
- Connection
- 1/2"
- Series
- 212
- Material
- Aluminium
