Pyropress
Pyropress Perseus Exd Temperature Switch
SKU TSA611
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Exd Flameproof Temperature Switch
- ATEX & IECEx Flameproof CEII2GD Exd IIC
- -10°C to + 240°C
- 1 x SPDT micro switch or 2 x SPDT micro switches (simultaneous operation)
- Wetted Parts NACE MN-01-75 Compliant
- Internal adjustment scale
- Black anodised aluminium switch case to IP67 standards
- Proven and documented SIL 2 IEC 61508 suitability
- 1/2" BSPP Thermowell Thread Connection
- Thermowell included
Description

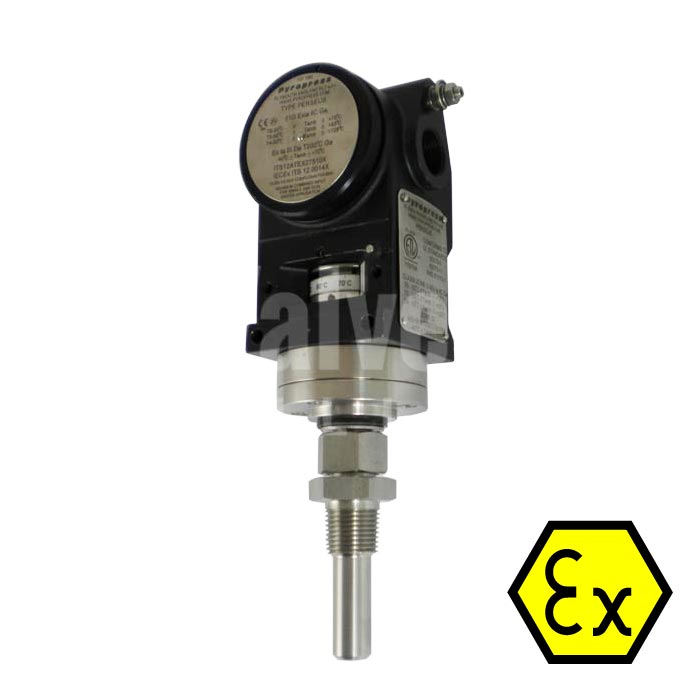

Temperature switches suitable for flameproof (explosionproof) hazardous areas. Manufactured in the UK, the Perseus temperature switch offers a rugged black anodised aluminium housing, giving high performance and +/- 1.5% repeatability under extreme conditions.
Supplied with a standard stainless steel thermowell, easy to adjust internal scale (tommy bar included) which can be adjusted whilst the power is in operation because of separate chambers. Single or double microswitch options are offered.
Thermowell dimensions include 50mm, 100mm & 150mm, other dimensions, sizes and connections are available on request.
