ARI-Armaturen
PN40 Stainless Steel ARI FABA Plus Globe Regulating Valve
SKU GV5582
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN40 Stainless Steel ARI FABA Plus Globe Regulating Valve
- Fig. 55.046 Regulating Valve with Bellows Seal
- PN40 Flanged Connection
- Stainless Steel (1.4408) Body
- PN40 up to 400°C Rated
- DN15 (1/2”) to DN150 (6”) Available
Description
The ARI FABA-Plus regulating valve is ideal for manual throttling and control duties requiring bellows seals for maintenance free operation.
Suitable for industrial uses in applications as varied as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.

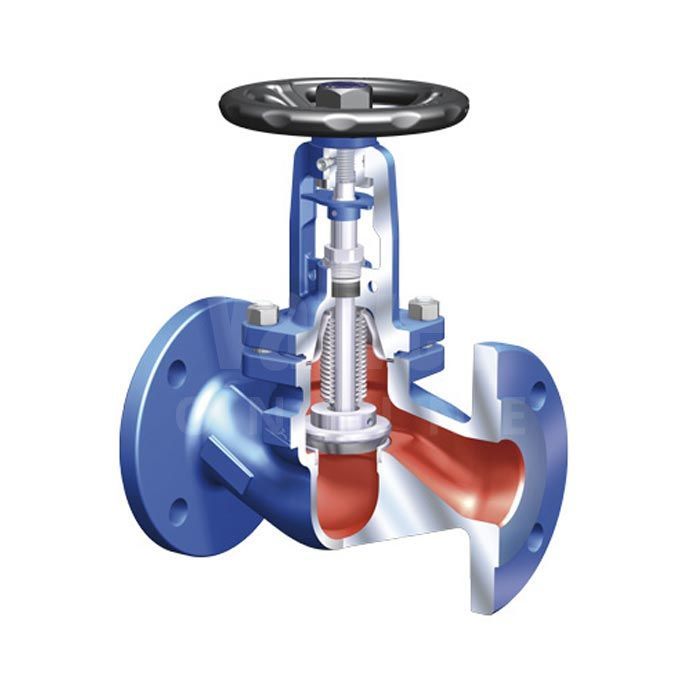

Non-Rising Handwheel operated, with flanged connections, double wall bellows seal, regulating plug with marginal seat and a bonnet optimised for accessories.
Options available upon request include angle pattern bodies, flanges according to ANSI, open & close limit switches and PTFE seats.
PN40 Stainless Steel ARI FABA Plus Globe Regulating Valve Datasheet
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- Bellows Sealed, Handwheel Non Rising Stem
- Industry / Approvals
- High Temperature
