Images are illustrative and may not show every size or variation.
ARI-Armaturen
PN40 Cast Steel ARI FABA Plus Globe Regulating Valve
SKU GV5581
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN40 Cast Steel ARI FABA Plus Globe Regulating Valve
- Fig. 35.046 Regulating Valve with Bellows Seal
- PN40 Flanged Connection
- Cast Steel (1.0619+N) Body
- PN40 up to 450°C Rated
- DN15 (1/2”) to DN250 (10”) Available
Description
The ARI FABA-Plus regulating valve is ideal for manual throttling and control duties requiring bellows seals for maintenance free operation.
Suitable for industrial uses in applications as varied as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.

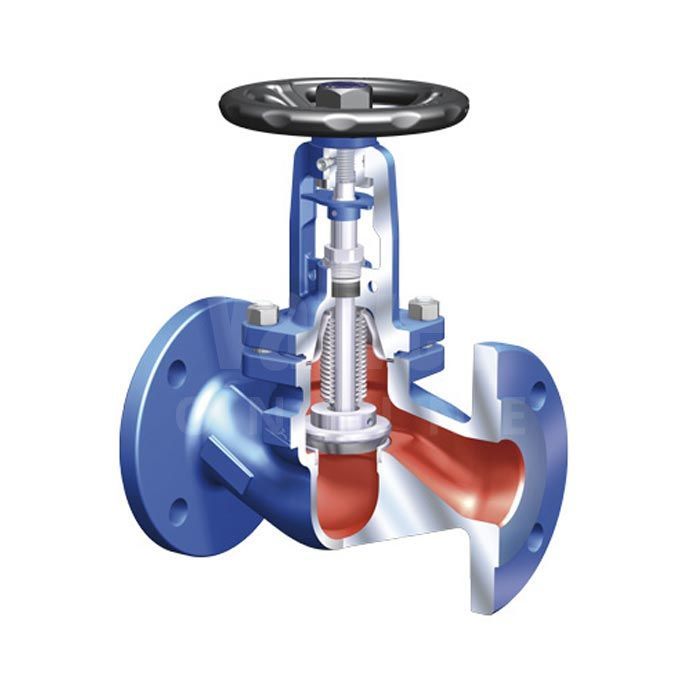

Non-Rising Handwheel operated, with flanged connections, double wall bellows seal, regulating plug with marginal seat and a bonnet optimised for accessories.
Options available upon request include angle pattern bodies, flanges according to ANSI, open & close limit switches and PTFE seats.
PN40 Cast Steel ARI FABA Plus Globe Regulating Valve Datasheet
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Cast Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
- Design
- Bellows Sealed, Handwheel Non Rising Stem
- Industry / Approvals
- High Temperature
