ARI-Armaturen
PN40 Cast Steel ARI FABA Plus Globe Isolation Valve
SKU GV5413
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PN40 Cast Steel ARI FABA Plus Globe Isolation Valve
- Fig. 35.046 Stop Valve with Bellows Seal
- PN40 Flanged Connection
- Cast Steel (1.0619+N) Body
- Up to 450°C Temperature Rated
- DN15 to DN250 (½” to 10”) Available
Description
The ARI FABA-Plus Stop valve is ideal for isolation duties requiring bellows seals for maintenance free operation.
Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.

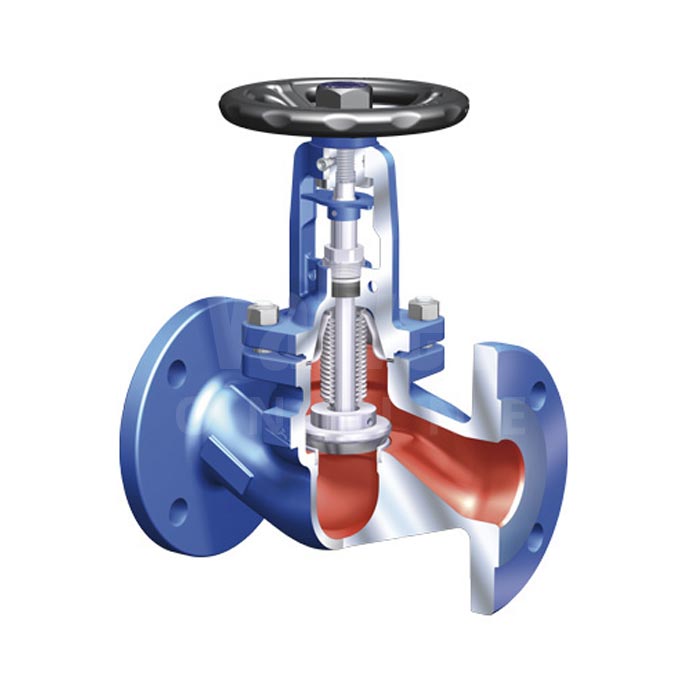

Non-Rising Handwheel operated, with flanged connections, double wall bellows seal, plug with marginal seat and a bonnet optimised for accessories.
Options available upon request include angle pattern bodies, flanges according to ANSI, regulating plugs, open & close limit switches and PTFE seats.
PN40 Cast Steel ARI FABA Plus Globe Isolation Valve Datasheet
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Cast Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
- Design
- Bellows Sealed, Handwheel Non Rising Stem
- Industry / Approvals
- High Temperature
