Images are illustrative and may not show every size or variation.
ARI-Armaturen

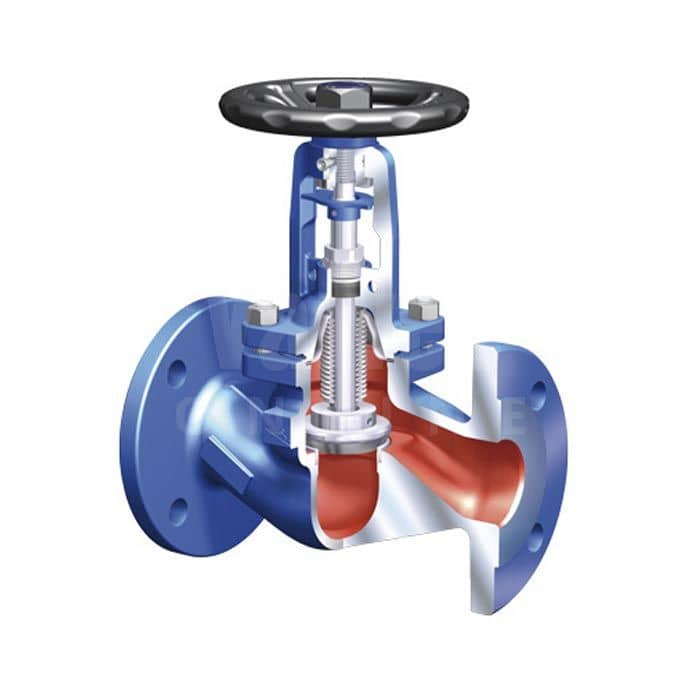

PN16 Cast Iron ARI FABA-Plus Globe Isolation Valve
SKU GV5411
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
The ARI FABA-Plus Stop Valve is a robust and reliable industrial globe valve for steam and water systems, designed specifically for maintenance-free isolation duties. Featuring a double wall bellows seal, it’s an ideal ARI valve for demanding applications where long-term performance and minimal servicing are essential.
This bellows seal valve for chemical and hospital applications is suitable for a wide range of industrial uses, including recycling facilities, chemical processing plants, hospitals, and systems handling process water and oil. With a PN16 flanged valve design and a cast iron (EN-JL1040) body, it offers durability and high temperature resistance up to 300°C.
The valve is non-rising handwheel operated, with flanged connections, a plug with marginal seat, and a bonnet optimised for accessories. Optional configurations include angle pattern bodies, ANSI flanges, regulating plugs, open/close limit switches, and PTFE seats available upon request.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Cast Iron
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Design
- Bellows Sealed, Handwheel Non Rising Stem
- Industry / Approvals
- High Temperature
- Main Features
- Cast Iron Body Up to 300°C DN15 to DN300
