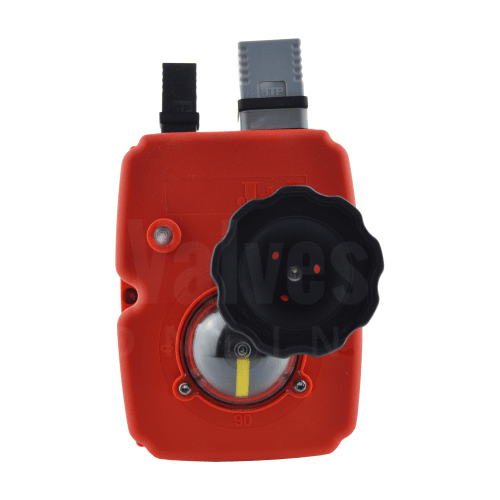

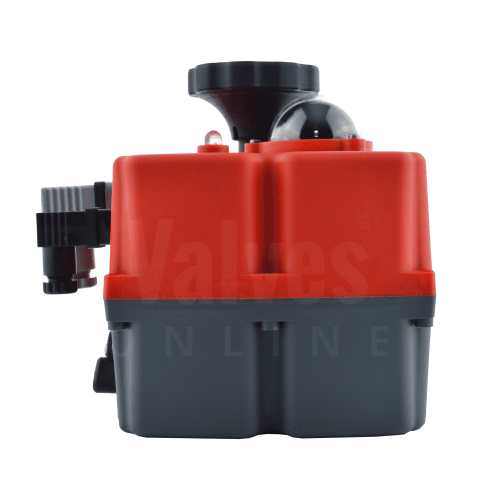

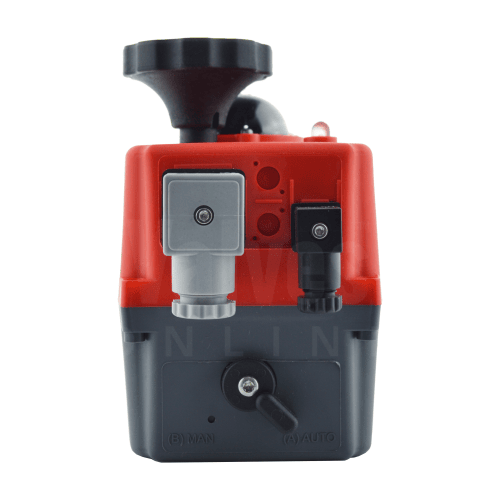

J+J J4C-S55 Electric Actuator Multi Voltage 55Nm
SKU J4C-055
from£313.98ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- J+J Electric Actuator
- J4C-S55
- New Version of J3C
- Break Torque: 60Nm
- Max Operational Torque: 55Nm
- Polyamide Body
- Multi Voltage: 24 - 240 VDC / VAC
- On/Off & Modulating Versions
- Failsafe Battery Backup Option
- Manual Override
Description
The J4C is the new updated version of the J3C.
J+J J4C-S55 Series Electric Valve Actuator with a break torque of 60Nm and run torque of 55Nm. This smart actuator is multi-voltage (24-240V DC/AC) with automatic voltage sensing and is available as standard on/off or modulating function, with or without failsafe battery backup.
Popular worldwide, the J4C quarter turn electric actuator series features an IP67 weatherproof polyamide body with anti-condensation heater, protection against over-torque, manual override and continual visual actuator status feedback via LED.
