INOXPA

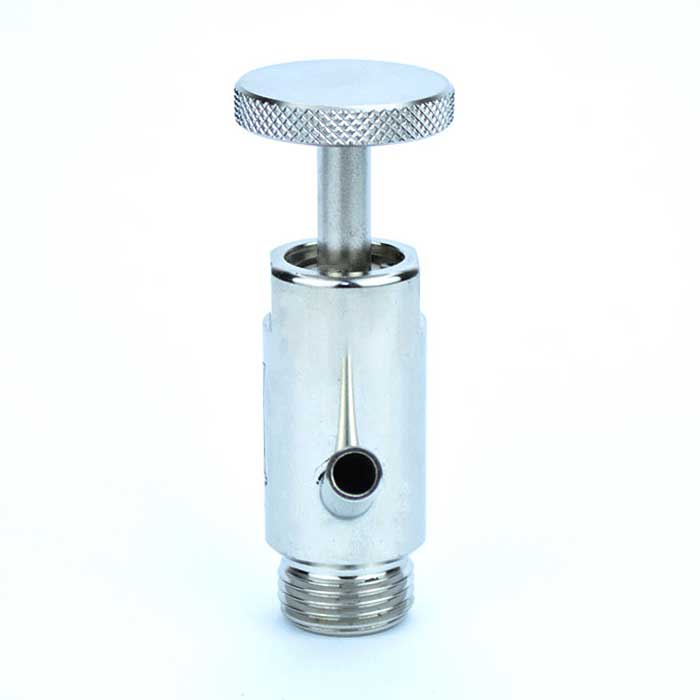

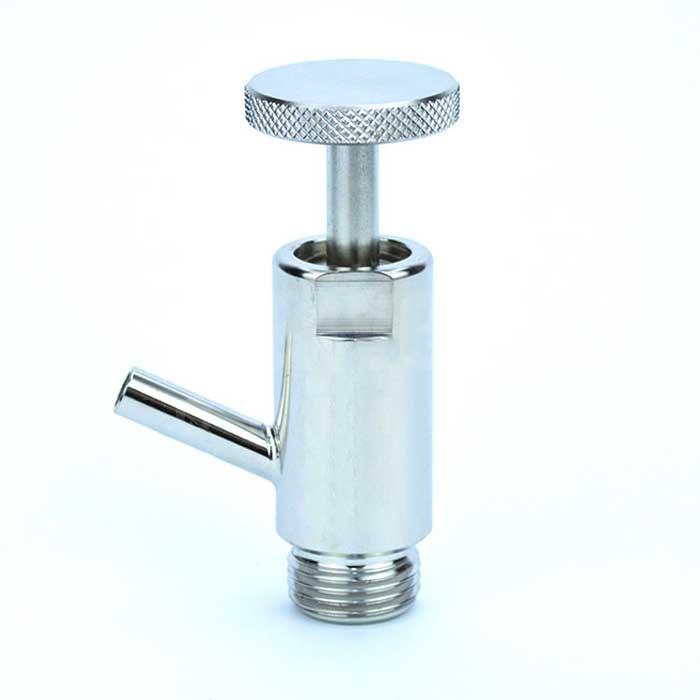

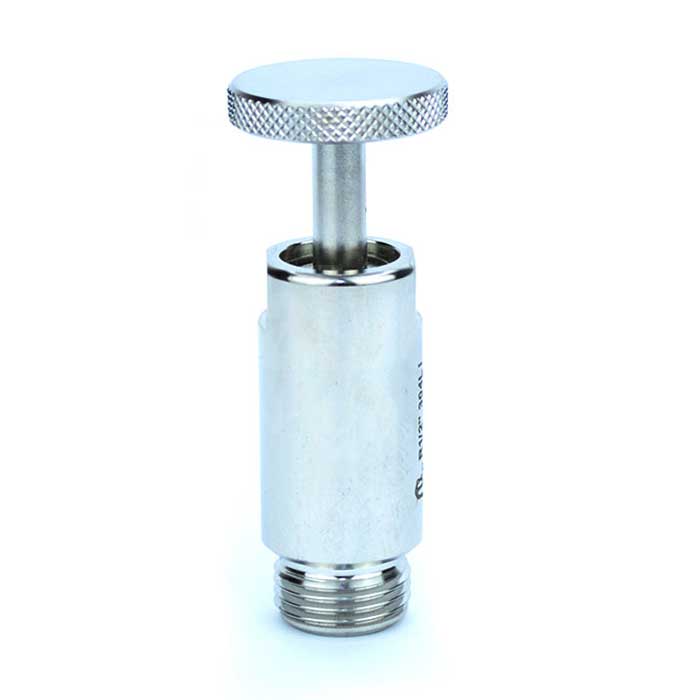

Inoxpa 8200 Hygienic Sampling Valve
SKU HV5281
Sizes: 1/4", 1/2"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Hygienic Sample Valve
- Investment Cast 304L Stainless Steel
- Threaded male inlet (ISO 228-1)
- NBR FDA approved seals
- Sizes: 1/4" & 1/2"
- Max Working pressure: 6 Bar
Description
Inoxpa 8200 Hygienic Sampling Valve in polished 304L Stainless Steel with easy adjustment knurled wheel, threaded male inlet (ISO 228-1) and NBR FDA approved seals. Available in sizes: 1/4" and 1/2". Suitable for use in process applications to identify, control quality and / or for regulatory assessment of fluid / media directly from the pipeline.
This sampling valve is designed to take samples in liquid process plant for the food-processing, beverage and chemical industries.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Operating principle
The sample is obtained by unscrewing the head to separate the membrane from its place to allow the fluid to enter the outlet tube.
Design and features
Materials
Technical
Joint seals in hygienic valves are free from dead zones, removing the risk of bacteria and debris build up.
Inoxpa 8200 Hygienic Sampling Valve Datasheet
Technical specification
- Size
- 1/4", 1/2"
- Connection
- Threaded Connection ISO 228-1
- Body Material
- Stainless Steel AISI 304L
- Seal Material
- NBR - FDA Approved
- Temperature Range
- -30ºC to 100ºC (30ºC SIP, Max 30 Min)
- Pressure
- Max. working pressure: 6 bar, Min. working pressure 0,1 bar
