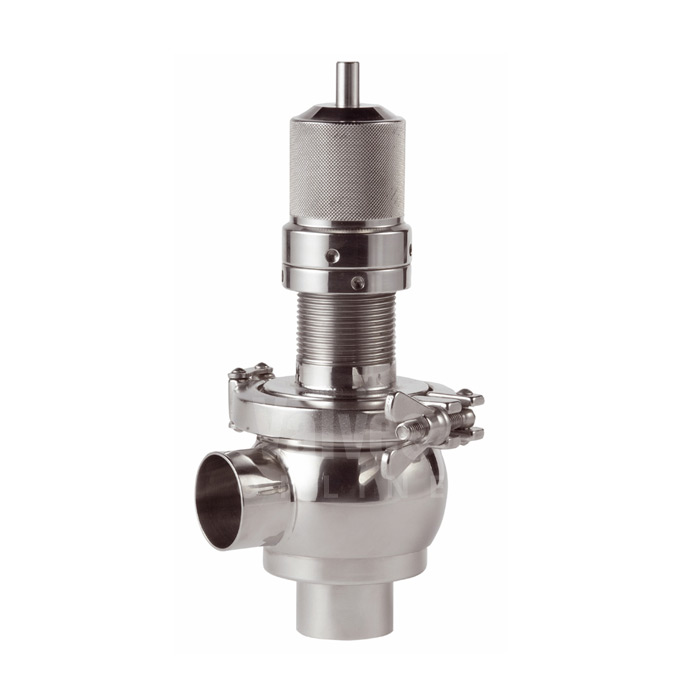

Inoxpa 74700 Hygienic Overflow Relief Valve with Lever Top

The Inoxpa 74700 Hygienic Overflow Relief Valve with Lever Top is a Stainless Steel AISI 316L/304L sanitary overflow relief valve with lever top and clamp or weld end connections to ASME BPE. EPDM Seal (-10°C to +120°C) according to FDA 177.2600A and valve surface is hygienically polished in sizes: DN25 (1") to DN80 (3"). Set pressure range 0-6 Bar and 0-10 Bar.

Under normal operating conditions, the valve remains closed. The valve is calibrated to a specific pressure by regulating the spring with the pressure nut.The calibrated pressure is a maximum safety pressure defined to avoid damage of the plant. When the pressure in the circuit exceeds the calibrated pressure, the valve opens letting the flow pass and reducing the pressure of the pipe system

Used to perform pressure bypass for safety purposes in order to protect lines, pumps, fittings, tanks, etc. Supplied with a lever top enabling partial opening of the valve in order to allow the passage of cleaning solutions during the CIP process.

The valve is suitable for food processing, beverage, wine making, chemical, cosmetic and oil making.
