Images are illustrative and may not show every size or variation.
IFM
IFM IN5225 Inductive Dual Sensor Kit for Valve Actuators
SKU AM5225
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- IFM Indutive Sensor Kit
- IN5225 Dual Sensor
- Target Puck 80/30 or 130/30
- For Monitoring Valve Positions
- Reliable Position Feedback on Valve Actuators
- Non-contact & Self-cleaning System
- Quick & Secure Mounting
- High Shock & Vibration Resistance
Description

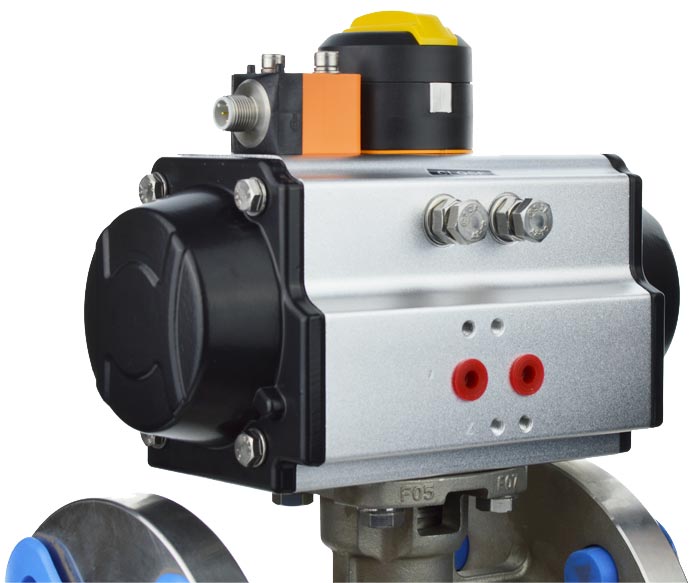

Our IFM Inductive Dual Sensor Kit for Valve Actuators includes the IFM IN5225 Inductive Dual Sensor and Target Puck (a choice of 80/30 or 130/30 size).
The valve sensor consists of two inductive sensors on top of each other in one housing. Depending on the orientation of the target puck, the upper or lower sensor switches. This allows the system to operate without contact and is free of wear, ensuring maximum reliability and long service life.

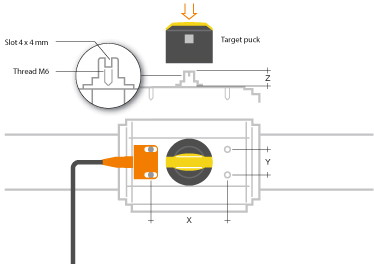

The Target Pucks are available in two sizes (80/30mm and 130/30mm). The 80/30 version is designed for shaft heights of 30mm or 20mm (using supplied adaptor) and the 130/30 is designed for shaft heights of 30mm.
Due to the standardised mechanical dimensions and hole centres the sensors and target pucks can be installed of all common actuators.
IFM IN5225 Inductive Dual Sensor Datasheet
IFM 80/30 Target Puck Datasheet
IFM 130/30 Target Puck Datasheet
