HKC
HQ006 ATEX Approved Electric Actuator
SKU AP9027
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- HQ006 ATEX Approved Actuator
- For ATEX & hazardous environments
- For use with quarter-turn valves
- Output torque: 60Nm
- Voltages: 24VDC, 24VAC, 110VAC, 220VAC
- Anti-condensation heater
- ATEX Ex ll G2 Ex d IIB T4
Description

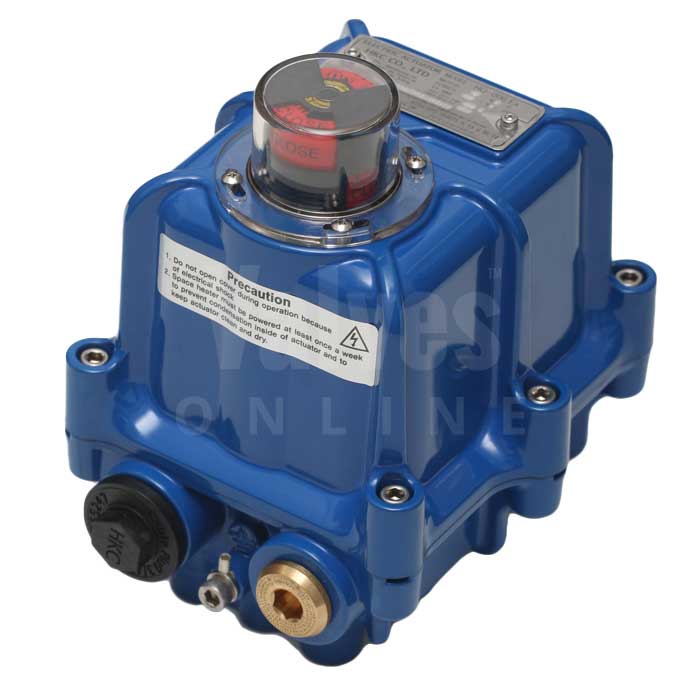

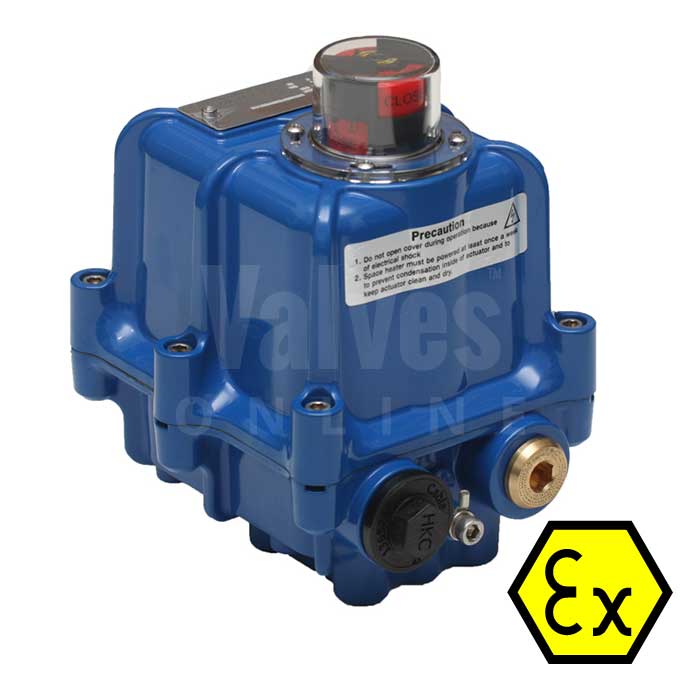

The HQ-006 ATEX Electric Actuator has a compact design ideal for use in hazardous areas with small ball valves (2” and less), dampers, butterfly and other quarter-turn valves.
The actuator is small, lightweight and compact due to high grade aluminium alloy housing, IP67 protected and high resistance to corrosion due to hard anodizing on inside and outside with polyester powder coating on external surface.
The HQ006 features a 60Nm output torque and is powered over a wide range of voltages.
Each actuator includes a visual indicator, two auxiliary switches and a compartment heater. A convenient allen key manual override shaft is standard.
This ATEX actuator is the clear choice when a compact, efficient electric actuator is required!
Approval: ATEX Ex ll G2 Ex d IIB T4
Technical specification
- Operation Type
- Electric
- Actuator Model
- HQ006 ATEX Approved
- Output Torque
- 60Nm
- Actuator Voltages
- 24VDC, 24VAC, 110VAC, 220VAC
- Actuator Features
- IP67, Four Limit Switches, Manual Override, Anti-Condensation Heater
- Approvals
- ATEX Approved - Atex Ex II 2 G Ex d IIB T4 Gb
