Images are illustrative and may not show every size or variation.
Gresswell

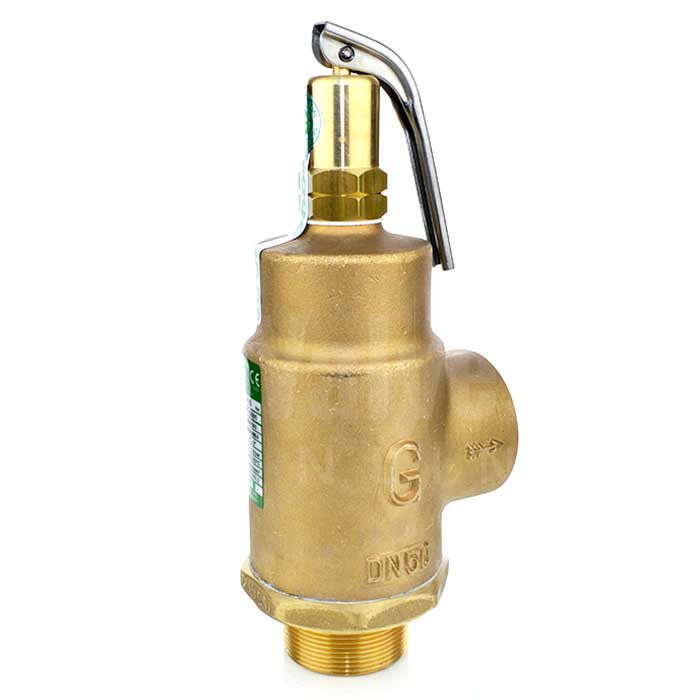

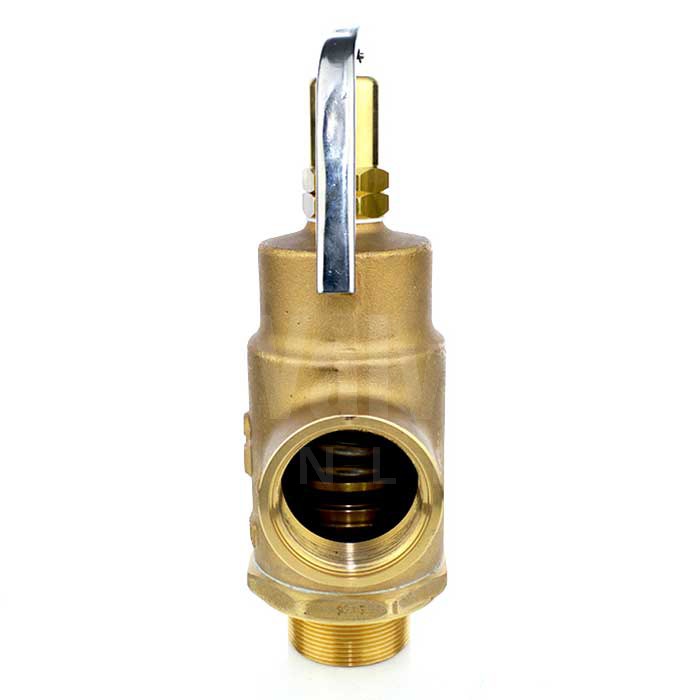

Gresswell G100 High Lift Metal Seated Safety Relief Valve
SKU RV4300
from£118.34ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Gresswell G100 Safety Relief Valve
- High Lift
- Lifting Lever
- Bronze body
- Metal Seated
- Sizes 1/2" to 2"
- Pressure range: 0.3 - 20.7 Bar
Description
Gresswell's G100 High Lift Metal Seated Safety Relief Valve with Lifting Lever is suitable for steam and gas; used to prevent excess pressure build up in systems providing maximum flow rates.
Typical applications include: steam boilers, pipelines and vessel protection. Not suitable for liquids.
Gresswell Valves are quality assurance approved to BS EN ISO 9001: 2008 and manufactured in accordance with BS EN ISO 4126-1 & BS6759.
Technical specification
- Type
- Safety Relief
- Design
- High Lift
- Set Pressure Range
- 0.3 - 20.7 bar
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- End Connection
- BSP
- Body Material
- Bronze
- Industry / Approvals
- Steam
- Head Type
- Lever
