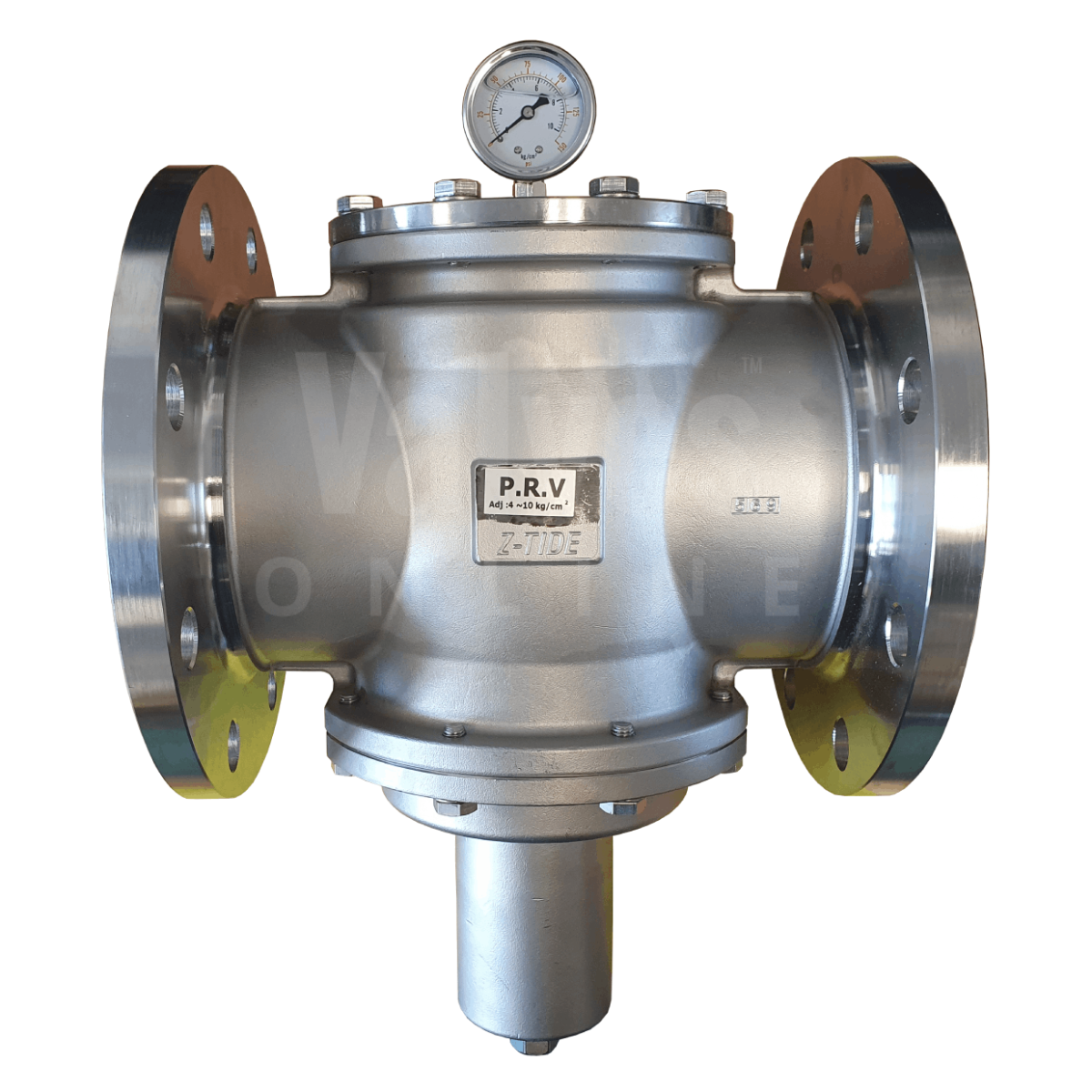

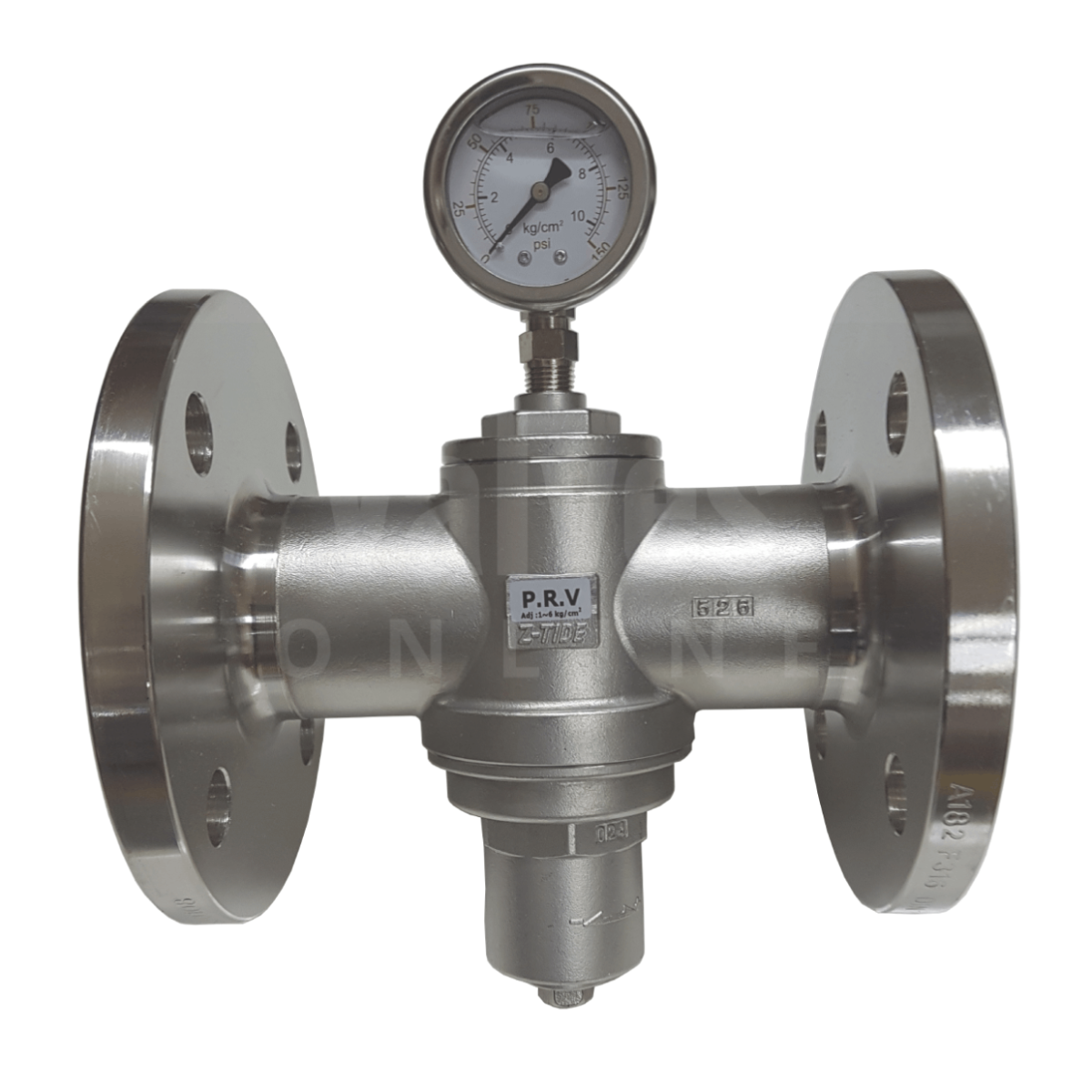

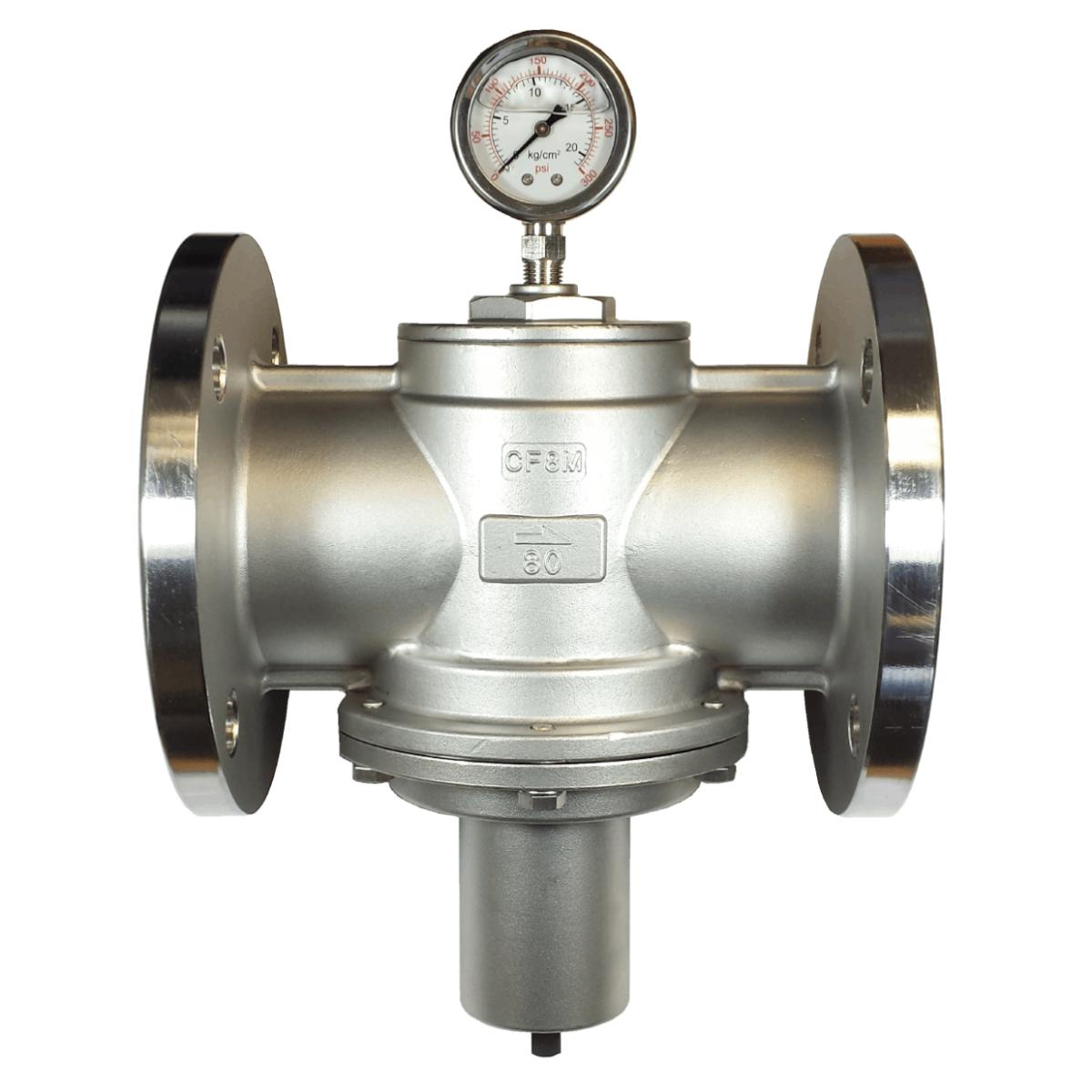

Flanged PN16 Stainless Steel Pressure Reducing Valve
SKU PR4523
from£441.99ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
This flanged PN16 stainless steel pressure reducing valve features a stainless steel body, NBR or viton seals, and is supplied with a pressure gauge that displays outlet pressure. Available in sizes: DN15 to DN150 with Flanged PN16 end connections
Available with outlet pressures: 1.5 - 6 Bar, 4 - 10 Bar, and 8 - 13 Bar.
The maximum inlet pressure is 20 Bar for air, and 25 Bar for water. The valves have a working media temperature range of -15°C to +60°C maximum.
Technical specification
- Media
- Liquid / Water, Air
- Adjustment Range
- 1.5 - 6 bar, 4 - 10 bar, 8 - 13 bar
- Body Material
- Stainless Steel
- End Connection
- Flanged PN16
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Main Features
- Stainless Steel Body NBR or Viton seals Sizes available: DN15 to DN150
