Images are illustrative and may not show every size or variation.
VOLT

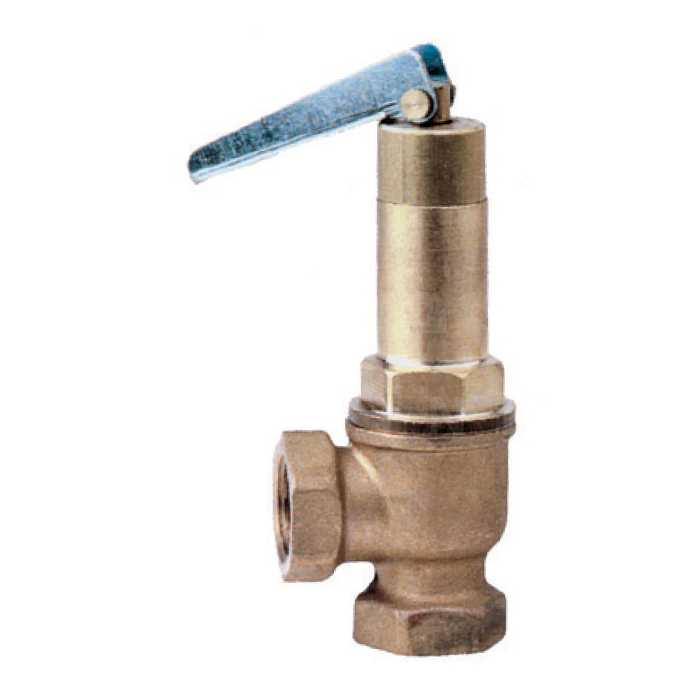

Economy Brass/Bronze Spring Pressure Relief Valve – PTFE Seat & Test Lever
SKU RV4312
from£65.35ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Spring Pressure Relief Valve with Lever
- Brass / Bronze Body
- PTFE Seat
- Screwed BSPP Female Inlet & Outlet
- Test Lever
- Spring Range: 0.5 up to 10 Bar
- Sizes: 1/2" to 2"
Description
A Brass/Bronze spring relief valve with test lever, PTFE seats, BSPP female inlet and out ports and a spring range from 0.5 up to 10 Bar.
This cost effective yet reliable relief valve is compact in size and features and brass / bronze body.
This valve is not suitable for temperatures exceeding 180°C and when used with fluid media, some may pass through the stem.
Technical specification
- Type
- Pressure Relief
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- End Connection
- BSP
- Body Material
- Bronze, Brass
- Head Type
- Lever
