Durapipe

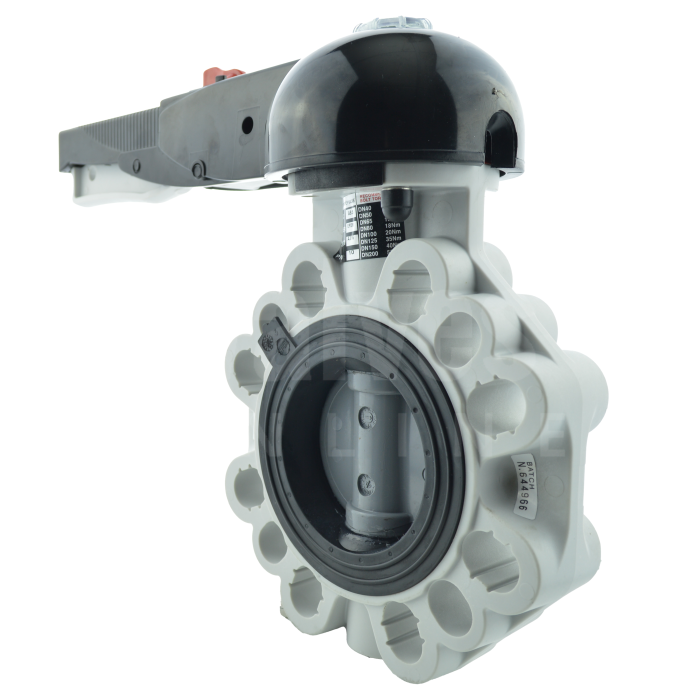

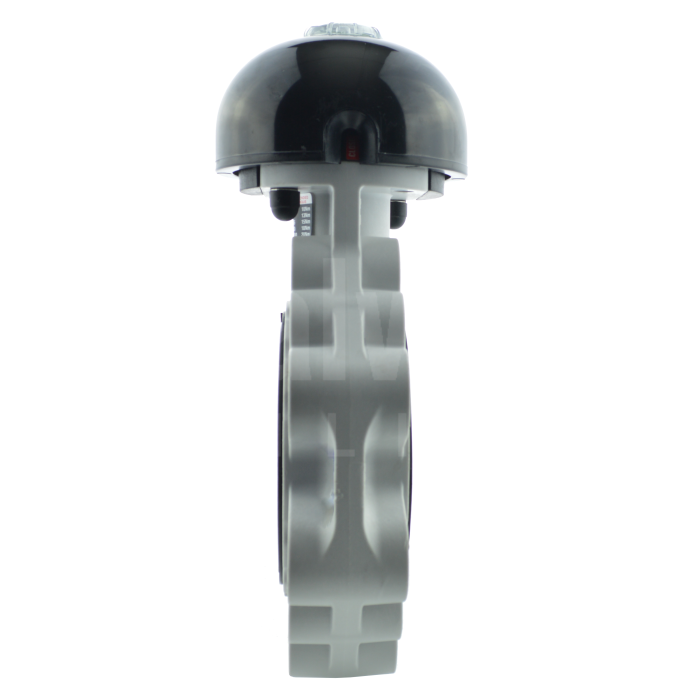

Durapipe FK Butterfly Valve - ABS Disc
SKU BF5601
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Aliaxis Durapipe (FIP) Butterfly Valve
- ABS Disc
- Glass Reinforced Polypropylene Body
- EPDM or FKM Liner
- 1 1/2" to 8"
Description
This Aliaxis Durapipe FK Butterfly Valve with ABS Disc offers high performance and excellent flow characteristics, with minimal pressure drop over a wide range of fluid applications.
The body is manufactured from Glass Reinforced Polypropylene and the disc in ABS and offered in sizes from 11/2” to 8" with options for either EPDM or FKM liners.
The oval holes in the valve body (DN50 to DN200) allow connection to the following flange drilling standards:
Lever operated versions are fitted with a handle locking device (with 10 ratchet positions at 10° intervals for regulating flow). Options to install either a gearbox or actuator to the valve upper flange with standard ISO drillings. The valve is fully maintainable and replacement parts are available.
Durapipe FK Butterfly Valve - ABS Disc Datasheet
Technical specification
- Flange Accommodation
- PN10, ANSI 150, Table D, Table E
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Disc Material
- ABS
- Liner
- EPDM, FKM Viton
- Main Features
- ABS Disc EPDM or FKM Liner 1 1/2" to 8"
