VOLT

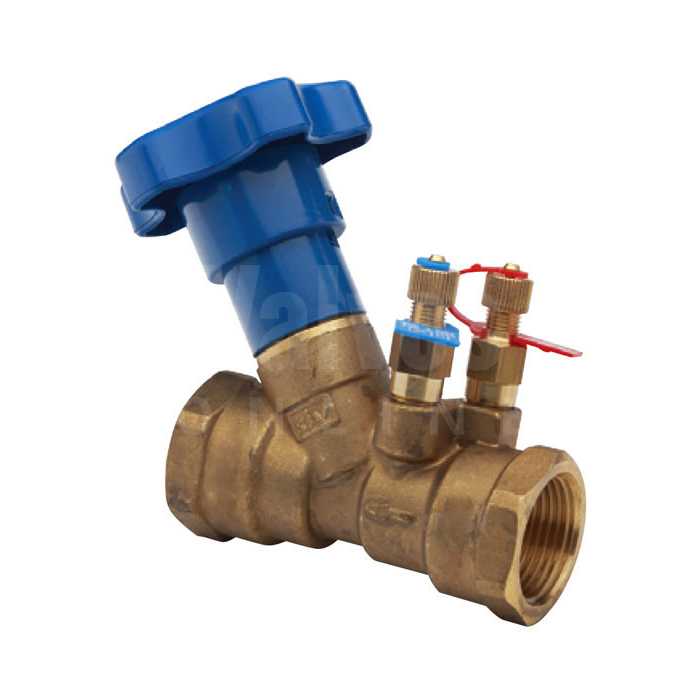

Double Regulating Valve Fixed Orifice Screwed BSPP
SKU DR5187
Sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Double Regulating Valve
- Fixed Orifice
- DZR Brass body
- Screwed BSPP
- Sizes 1/2" to 2"
- Pressure rating: PN25
- Supplied with Test Points
- Suitable for Heating & Cooling Systems
Description
Our DR5187 Double Regulating Valve with Fixed Orifice and Screwed BSPP female threaed end connections provides a correct balance between the diferent branches of a heating or cooling system to be optained.
The valve can be used to regulate flow by modifying the position of the throttling disc via the rotating heandwheel and combines flow measurement in one valve. The handwheel can be used to stop flow at any time.
Maximum pressure up to 25 bar up to 80°C and 20 bar up to 100°C
A fixed orifice valve with DZR Brass body and test points as standard.
For further information download the accompanying technical datasheet.
Double Regulating Valve Fixed Orifice Screwed BSPP Datasheet
Technical specification
- Type
- Double Regulating / Balancing, Commissioning Valve
- End Connection
- BSP
- Size
- 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
