Images are illustrative and may not show every size or variation.
VOLT

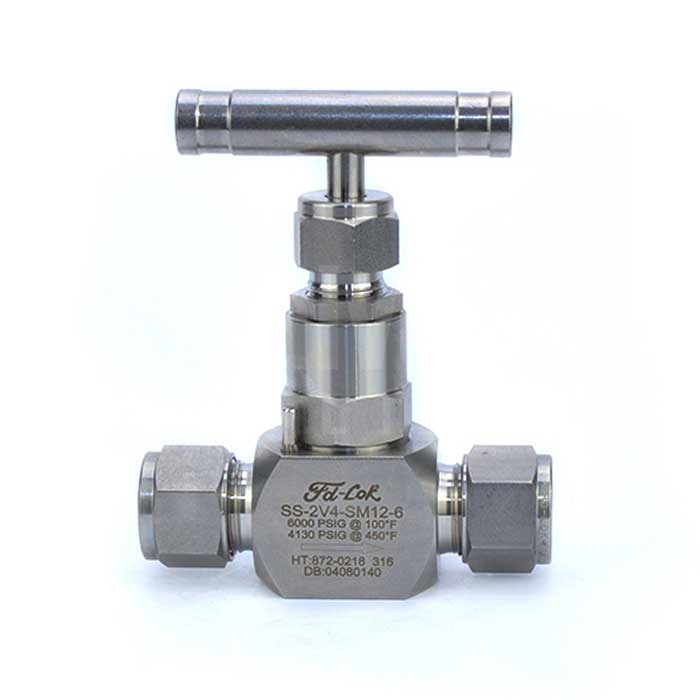

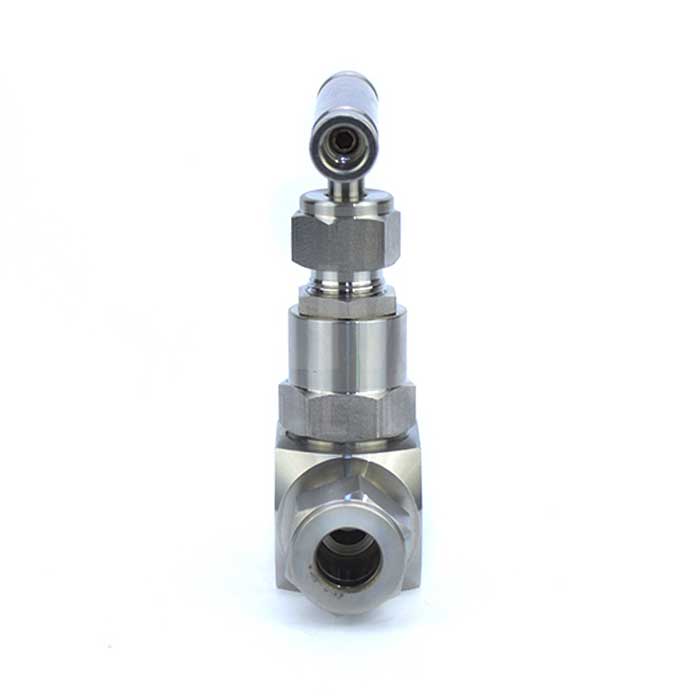

Compression Ended 316 Stainless Steel Needle Valve 6000 PSI
SKU NV3027
Sizes: 1/4", 3/8", 1/2", 6mm, 8mm, 10mm, 12mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Compression Needle Valve
- 316 Stainless Steel Body
- Twin Ferrule Compression Ends
- Temperature: -54°C to 232°C
- Pressure: Up to 400 Bar (6000 PSI)
- Non Rotating Stem Tip
- Sizes: 1/4" to 1/2" (Imperial) & 6mm to 12mm (Metric)
Description
This twin ferrule compression ended needle valve is used widely in instrumentation and hydraulic applications to control the flow of fluids and gasses.
This precision needle valve allows safe isolation and precise regulation of flow, ensuring positive leak tight shut off, offering repeatability and reliability.
Available with imperial or metric compression ends, this robust stainless steel needle valve offers reliable and safe isolation and control in sizes 1/4" to 1", pressures of up to 6000 PSI (414 Bar) and temperatures of -54C to 232C with PTFE packing.
Features include a back seating design that protects the packing in the fully open position and a unique Non rotating stem tip.
Body to bonnet seal with metal to metal constant compression, isolates the bonnet thread from the media.
Manufactured by Fd-lok who are a leader in their field of high quality instrumentation valves and fittings.
Compression Ended 316 Stainless Steel Needle Valve 6000 PSI Datasheet
Technical specification
- End Connection
- Compression
- Body Material
- Stainless Steel
- Size
- 1/4", 3/8", 1/2", 6mm, 8mm, 10mm, 12mm
- Main Features
- 1/4" to 1/2" & 6mm to 12mm -54°C to 232°C Up to 400 Bar (6000 PSI)
