Images are illustrative and may not show every size or variation.
Zetkama - European

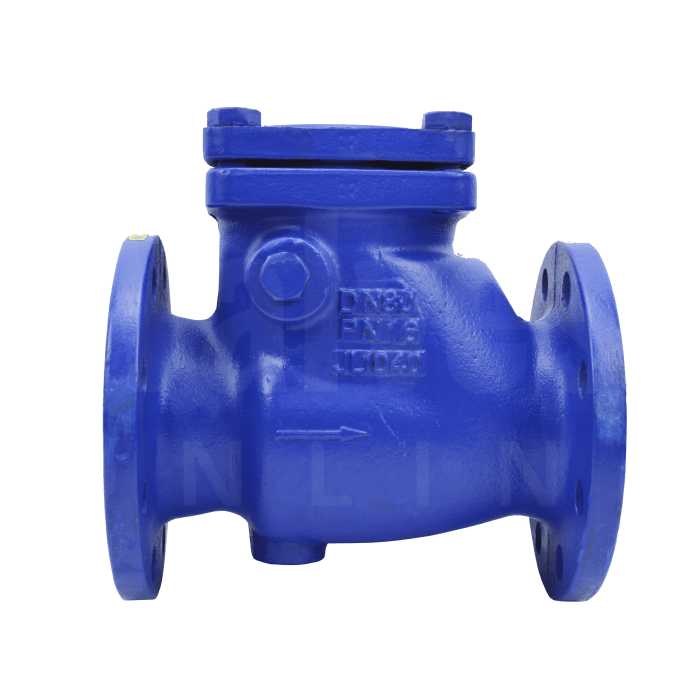

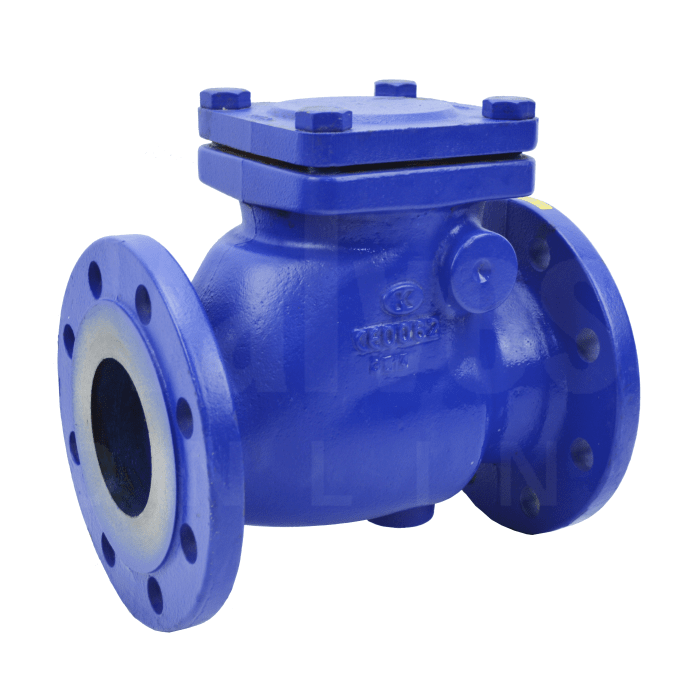

Cast Iron Swing Check Valve Flanged PN16 - Stainless Steel Seat
SKU CV5184
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Swing Check Valve
- Cast Iron body
- Economically Priced
- Stainless Steel seat
- Flanged PN16
- Sizes: 1 1/2" up to 12"
- Options for Lever & Weight
Description
Our Cast Iron Swing Check Valve with Stainless Steel Seat is Flanged to PN16. It offers excellent sealing capabilities for both high and low pressures.
Typically used for general purpose, industrial and HVAC applications which include water, heating, air-conditioning plants and compressed air systems. An economical, reliable valve with Cast Iron Check Valve.
Installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Technical specification
- End Connection
- Flanged PN16
- Design / Type
- Swing Check
- Industry / Approvals
- General Use, HVAC
- Body Material
- Cast Iron
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Face to Face Dimension
- 1 1/2": 180mm , 2": 200mm, 2 1/2": 240mm, 3": 260mm, 4": 300mm, 5": 350mm, 6": 400mm, 8": 500mm, 10": 600mm, 12": 700mm
- Main Features
- 1 1/2" to 12" 0°C to 300°C PN16 Rated
