Images are illustrative and may not show every size or variation.
Burkert

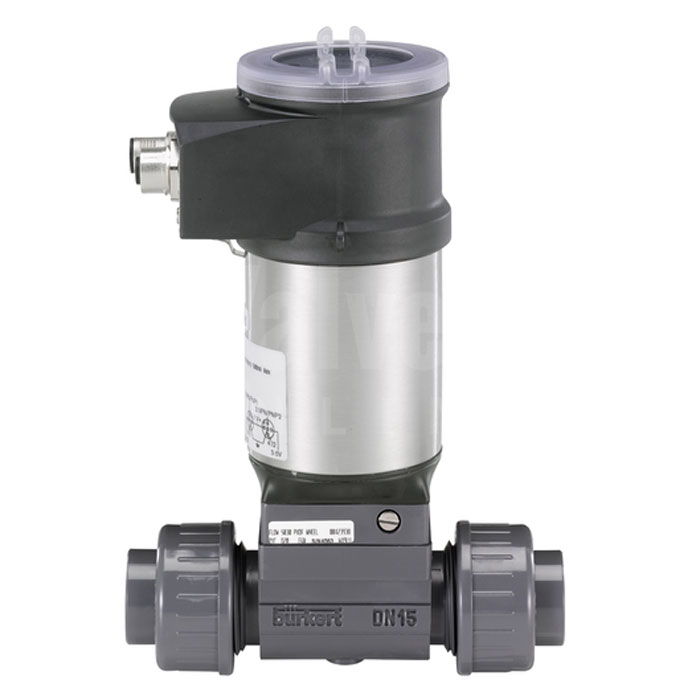

Burkert Type 8036 Inline PVC Flowmeter with Paddle Wheel
SKU BP8036
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Burkert Type 8036 - Inline PVC Flowmeter with Paddle Wheel
- Option of Blind transmitter or with removable backlit display/configuration module for indication of flow rate and volume with two flow totalizers
- PVC DN06 – DN65 True Union Connection
- PVDF Paddlewheel
- PN10, 50°C
- Automatic calibration using Teach-In, all outputs can be checked without the need of actual flow
- Direct interface with PLC’s
Description
PVC Flowmeter Type 8036 is a compact device, specially designed for measuring the flow rate in solid-free liquids. This flowmeter is available with or without Display and has:
2 configurable outputs , 1 x transistor output (NPN) and one 4 - 20 mA current output (2-wire)
Takes a 5-pin M12 male fixed connector
Type 8036 converts the measured signal, displays different values in different units (if display/configuration module mounted) and computes the output signals, which are provided via one or two M12 fixed connectors. Thanks to 1 or 2 transistor outputs, the flowmeter can be used to switch a solenoid valve, activate an alarm and, thanks to 1 or 2 current outputs, establish one or two control loops.
Options
3 configurable outputs , two transistor outputs (NPN/PNP) and one 4 to 20 mA current output (2-wire)
4 configurable outputs , two transistor outputs (NPN/PNP) and two 4 to 20 mA current outputs (3-wire)
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
