Images are illustrative and may not show every size or variation.
Burkert

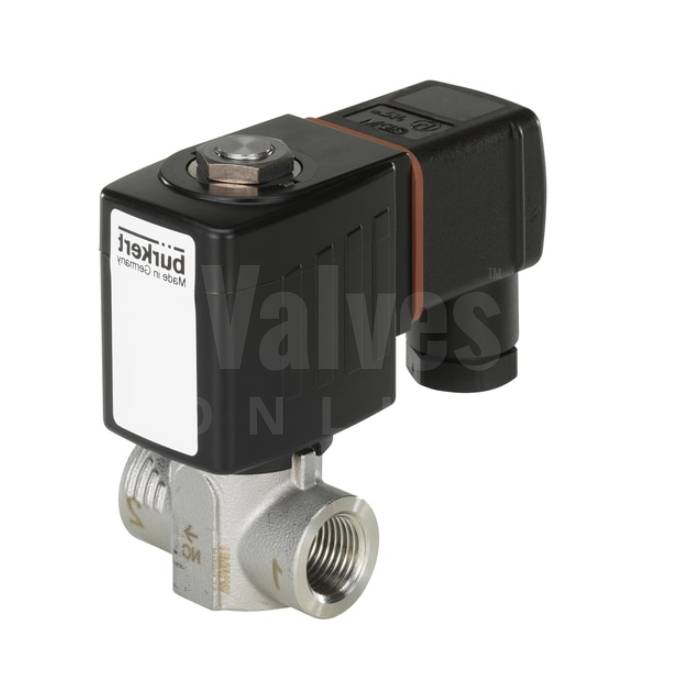

Burkert Type 6240 High Pressure Solenoid Valve
SKU BS6240HP
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- High Pressure Solenoid Valve
- BSP
- Sizes: 1/4" to 1/2"
- Normally Closed
- Stainless Steel Body
- PCTFE / FKM Seals
- Servo Assisted
- 1-250 Bar (depending on selection)
- Suitable for Air, Gases & Liquids
- Cable Plug Supplied
Description
The BS6240HP is a high pressure servo-assisted piston solenoid valve with pressures from 1 - 250 Bar dependant on selection. This safe and reliable solenoid valve is offered in a stainless steel body with PCTFE/FKM seals and a normally closed function.
The valve is available in sizes 1/4", 3/8" or 1/2" with orifices of DN6 and DN12 depending on flow requirements.
For enchanced pressure resistance and leak-tightness the stopper and plunger guiding tube are welded together and the housing design and surface quality enable maximum flow rates. The coils are moulded with chemically resistant epoxy.
Maximum temperature for this valve is -10°C up to +80°C.
Burkert Type 6240 High Pressure Solenoid Valve Datasheet
Technical specification
- Process / Industry
- High Pressure
- Body Material
- Stainless Steel
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- G1/4, G3/8, G1/2
- Seal Material
- FKM, PTFE
- Voltage
- 24V DC, 24V AC, 230V AC
- Main Features
- 1/4" to 1/2" 1 - 250 Bar (depending on selection) Normally Closed
