Images are illustrative and may not show every size or variation.
Burkert

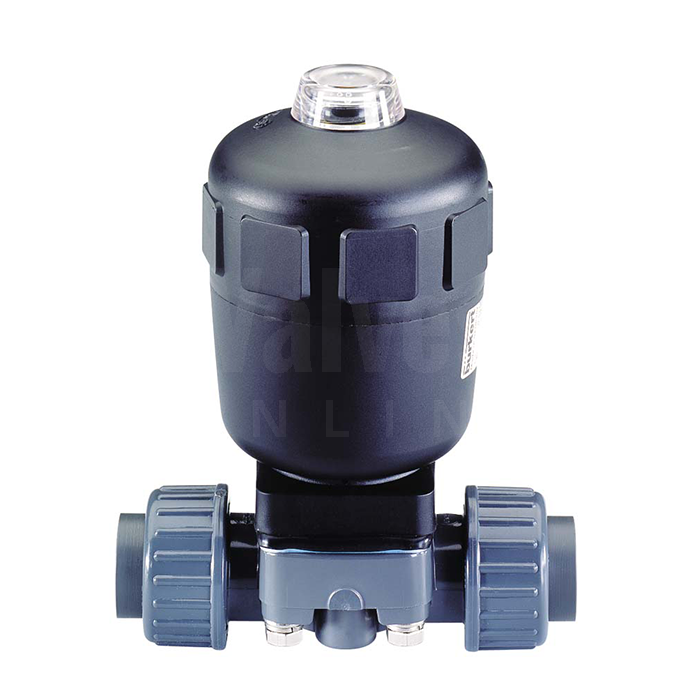

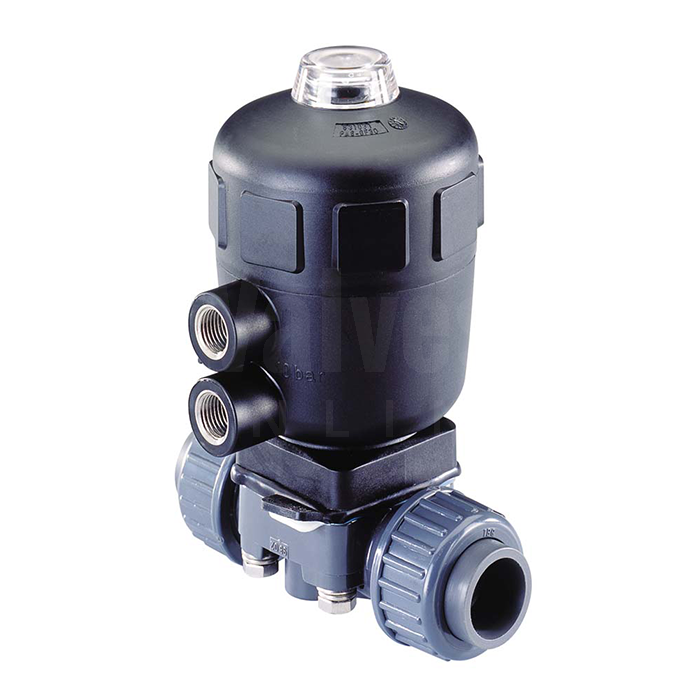

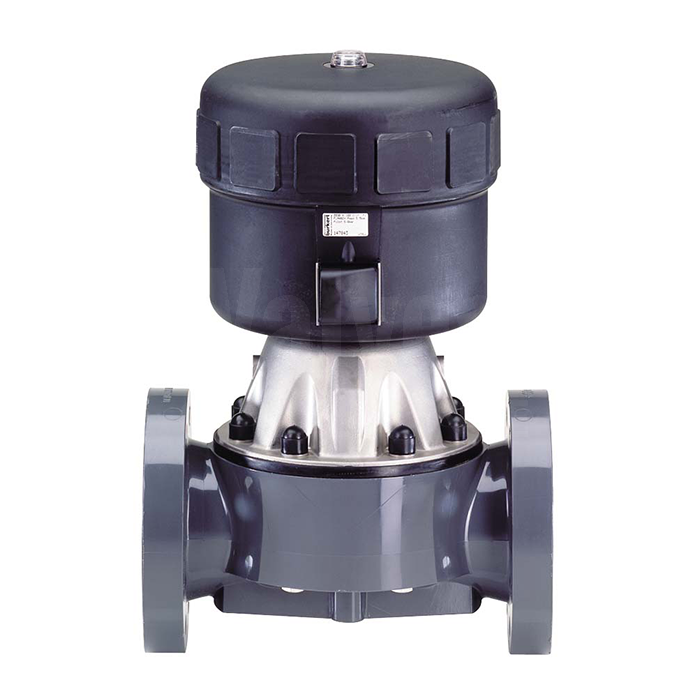

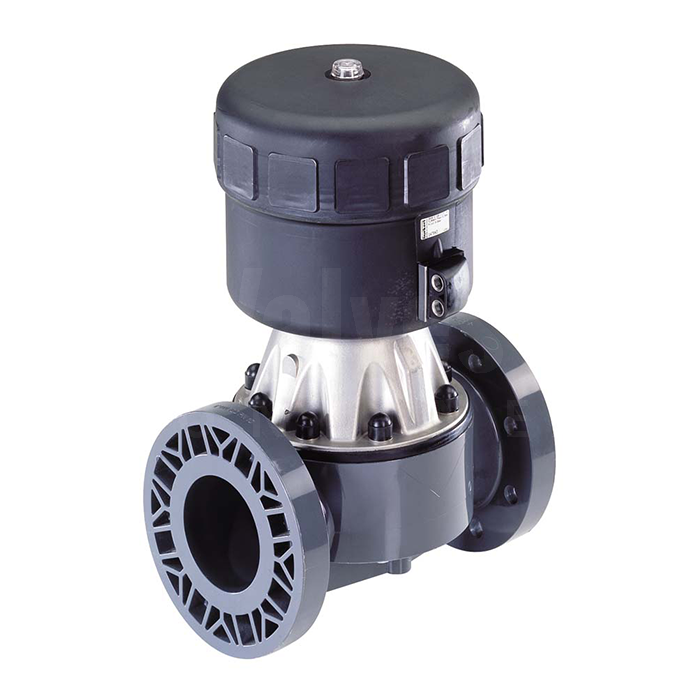

Burkert Type 2030 PVC Diaphragm Valve
SKU BU2030
Sizes: DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, D20, D25, D32, D40, D50, D63
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatically Operated
- PVC-U diaphragm valve
- Metric socket weld or Flanged end connections
- Sizes D20-D63 / DN65-DN100
Description
The Burkert Type 2030 is Pneumatically actuated with a polyamide Classic Type Actuator with Normally closed function and a PVC-U flow optimised body with zero dead volume and possible self-draining installation.
The Burkert type 2030 PVC Diaphragm valve is ideally suited to duties involving aggressive medias up to a maximum of 10 bar and challenging environments.
A maintenance free robust valve that can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation and manual override.
Alternative end connections, body materials (including Polypropylene and PVDF), and control functions available upon request.
Technical specification
- Body Material
- PVC-U
- Diaphragm Material
- EPDM, PTFE / EPDM
- End Connection
- Flanged, Metric Solvent Socket
- Size
- DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, D20, D25, D32, D40, D50, D63
Related products
BurkertSKU BU3003

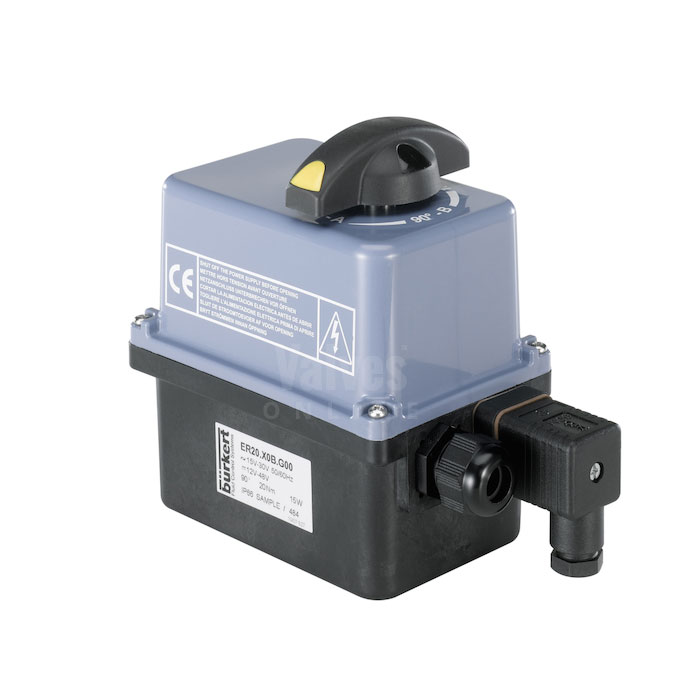

Polyamide Electric Actuator Type 3003 - 20Nm - 100Nm
BurkertSKU BU3005

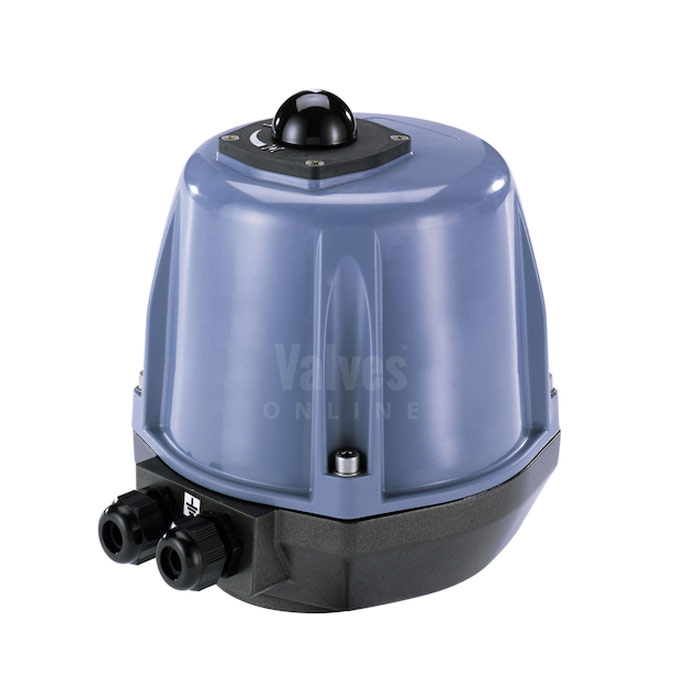

Type 3005 Electric Actuator 25Nm - 300Nm
BurkertSKU BU3004

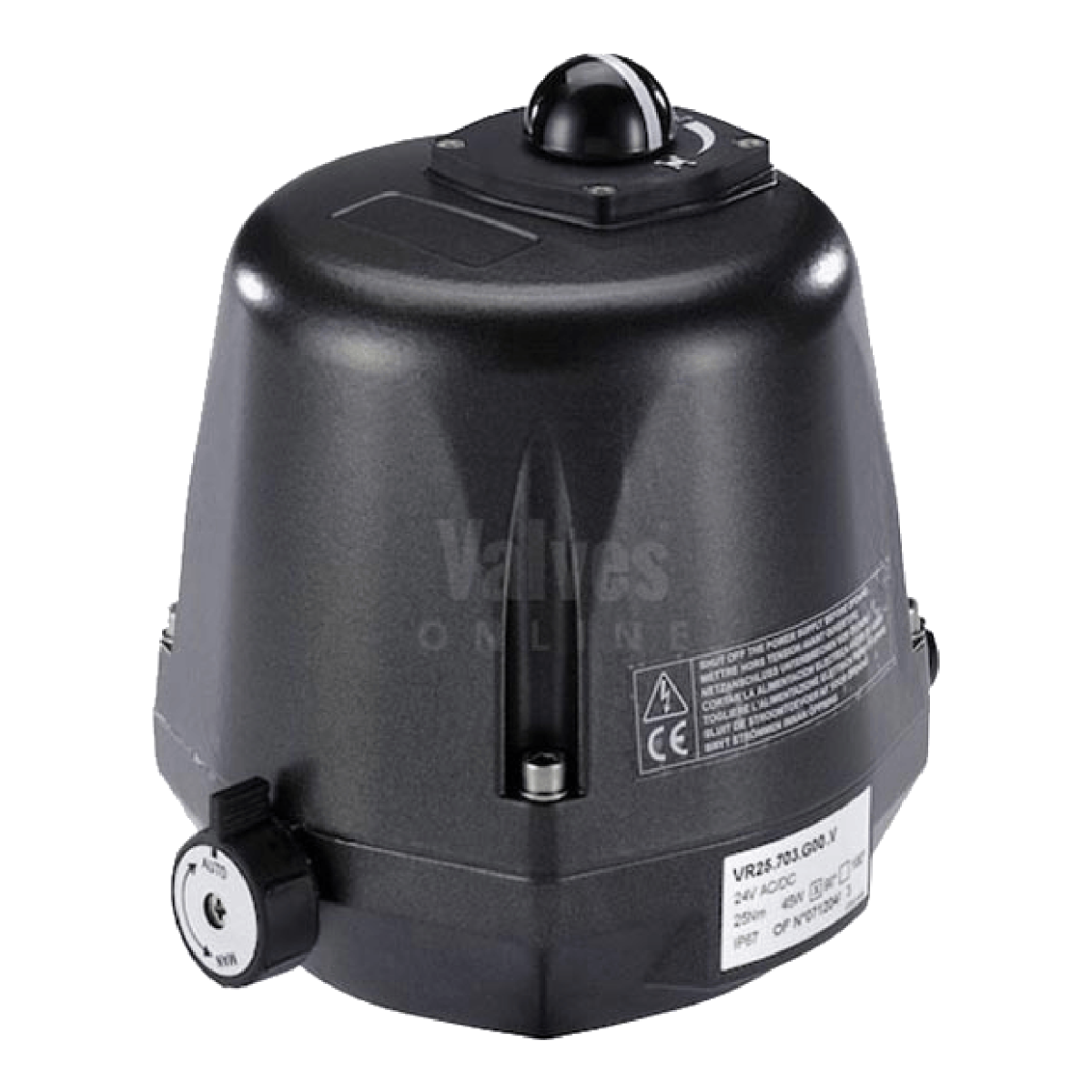

Valpes Explosion Proof ATEX Electric Actuator 25Nm - 300Nm
