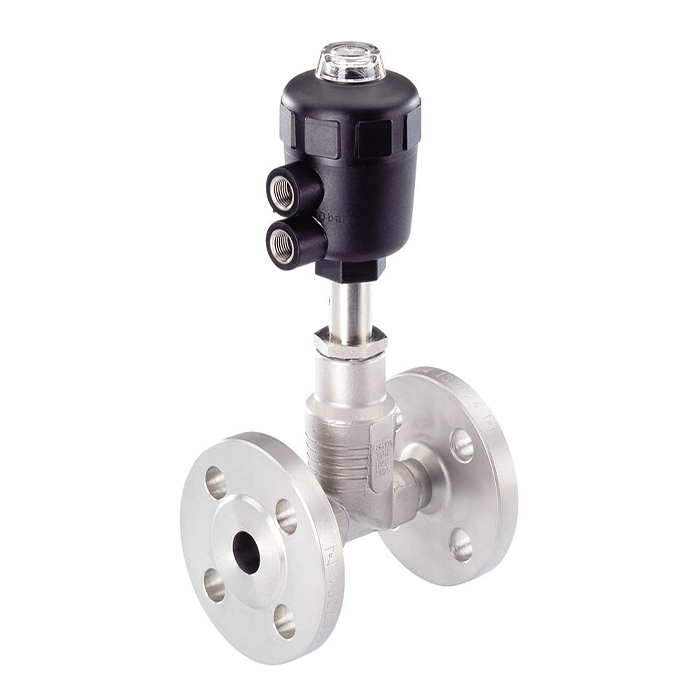

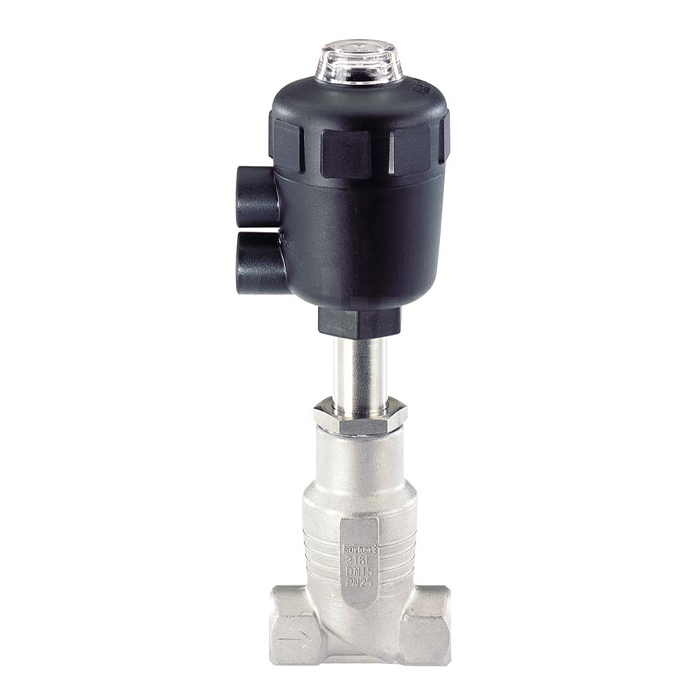

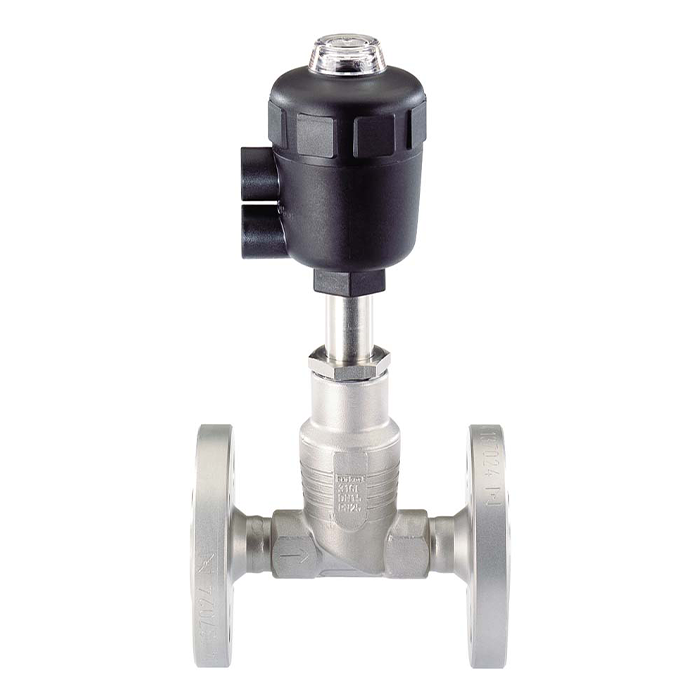

Burkert Type 2012 CLASSIC Globe Valves for Liquids and Gas
SKU BL2012
Sizes: 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic actuated angle seat valve
- Normally closed, 2 Way
- Stainless Steel body
- Polyamide actuator
- PTFE seats
- Flanged PN16 or Screwed BSP
- Sizes G3/8 to G2 & DN10 to DN100
- Suitable for liquids and gas
Description
Burkert type 2012 Stainless Steel Globe valve with flow below seat. Classic type pneumatic piston actuator. Normally closed function with normally open option (available on request). Stainless Steel body, PTFE Seats and seals with Polyamide piston type CLASSIC series actuator; available in sizes G3/8 to G2 BSP Threaded connections and DN10 to DN100 Flanged connections to DIN EN1092-1.
Suitable for water, alcohol, oils, fuel, hydraulic fluids, alkali solutions and compressed air. A maintenance free robust valve that can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation, and manual override.
Burkert’s classic angle seat valve benefits from live loaded packing and n-seal piston actuators delivering high flow rates and long service life.
Technical specification
- End Connection
- BSP, Flanged PN16
- Body Material
- Stainless Steel
- Size
- 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2
