Bray

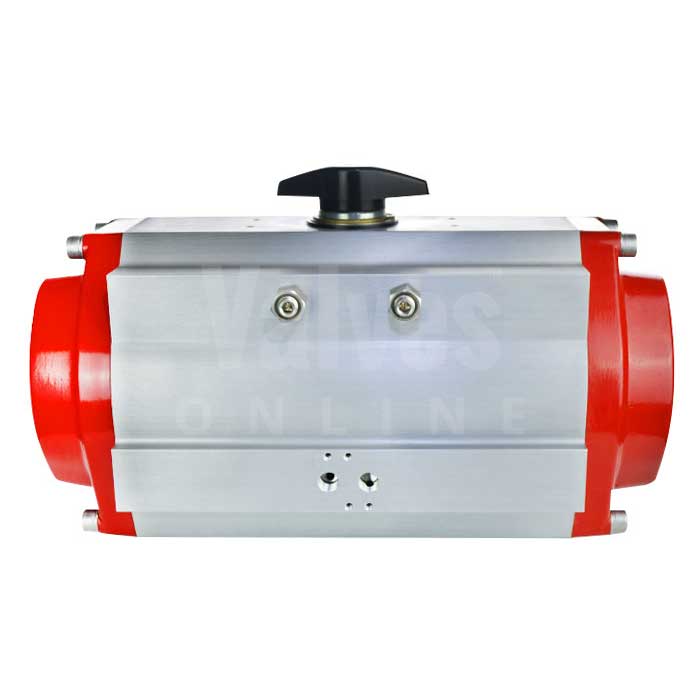

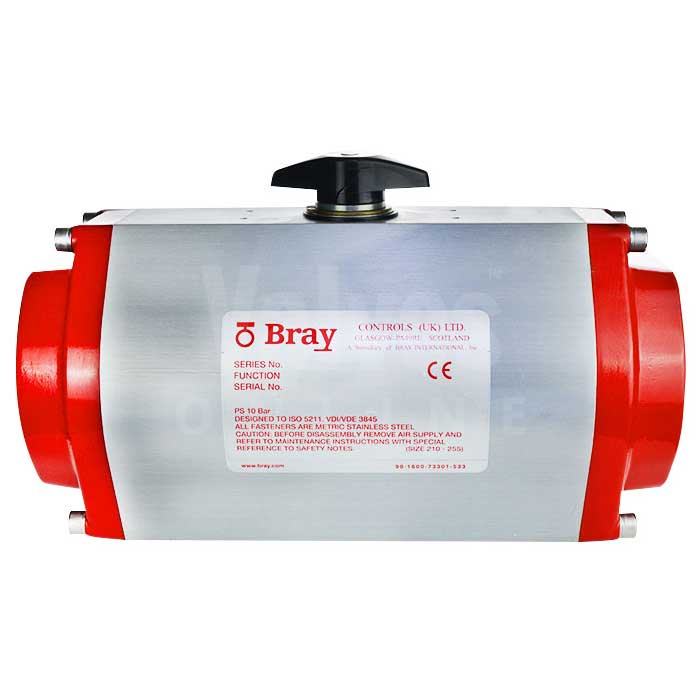

Bray Series S92 & S93 Pneumatic Rotary Actuator
SKU PA9293
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bray Pneumatic Actuator
- Quarter Turn
- Single Acting S93 & Double Acting S92
- Namur and Feedback Interfaces
- ISO 5211
- Position Indicator Fitted
- ATEX, ABS, PED, CE & SIL Approved
Description
Bray pneumatic actuators offer engineering excellence, producing modular rack and pinion actuators in two versions, Spring return which offers 90° rotation and Double acting for rotation of 90°, 135° and 180°.
Designed primarily for on /off and throttling applications for pneumatic operation up to a maximum pressure of 140 psi (10Bar). Both versions comply with ISO 5211 dimensions and mount directly to Bray Valves without the use of box section brackets or external linkages.
The actuators are completely enclosed and self contained, having permanently lubricated bearings and guides. The modular design allows easy fitting of actuator accessories, ensuring easy automation.
IP66 Enclosure, ABS, ATEX, Bureau Veritas, PED and SIL3 Certification.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Bray Pneumatic Actuator Datasheet
Technical specification
- Operation Type
- Pneumatic
- Function
- Spring Return & Double Acting
- Actuator Model
- S92, S93
- Approvals
- ATEX, ABS, PED, CE & SIL Approved
- Main Features
- Bray S93 & S92 Single Acting & Double Acting ATEX, ABS, PED, CE & SIL
