Images are illustrative and may not show every size or variation.
Bray
Bray Series 31 Lugged PN16 Butterfly Valve - 316 Stainless Steel Disc
SKU BR1131
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bray Series 31 Butterfly Valve
- Lugged PN16
- Ductile Iron body
- Lever or Gearbox Operator
- 316 Stainless Steel Disc
- EPDM, NBR (BUNA) or FKM liner
- Sizes 2" to 12"
Description
Bray's Series 31 Lugged PN16 Butterfly Valve with 316 Stainless Steel Disc is suitable for a range of general purpose, industrial, marine and HVAC applications, water distribution, water authorities and waste water (subject to configuration).
A resilient seated lugged and tapped butterfly valve featuring an epoxy coated Cast Iron body, 316 Stainless Steel disc and EPDM, NBR (BUNA) or FKM liner.
Bray butterfly valves benefit from high strength through-stem design, allowing easy disassembly of the valve and reduced disc to stem failure.

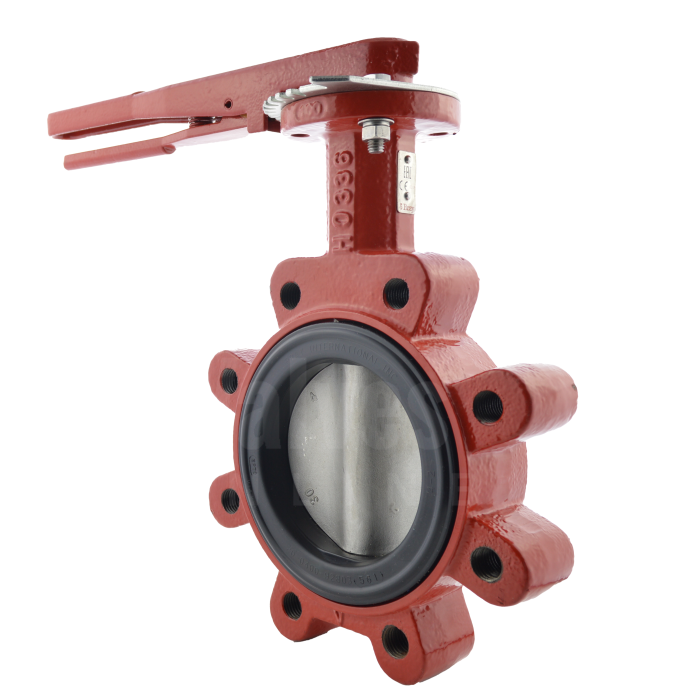

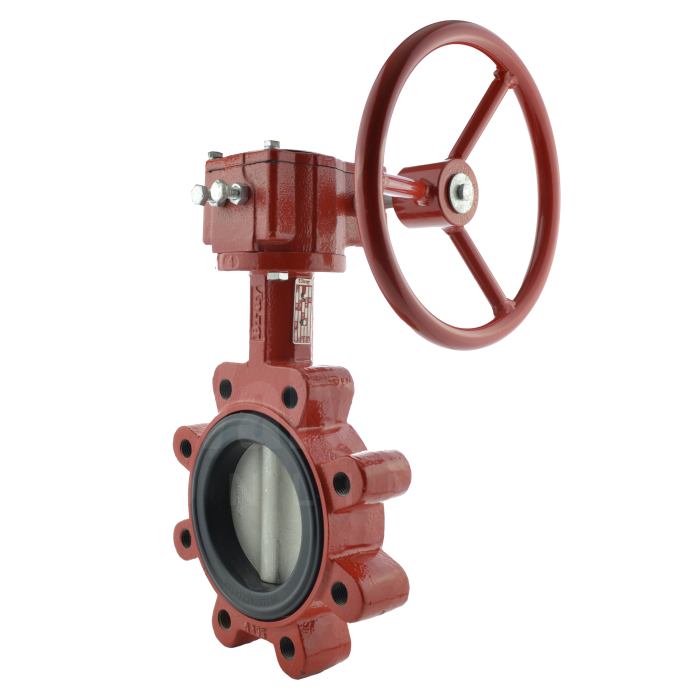

Supplied with either a Trim 007 hand lever or Type S04 hand wheel operated gearbox.
Suitable to fit between PN16 flanges.
For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)
Bray Series 31 Lugged PN16 Butterfly Valve - 316 Stainless Steel Disc Datasheet
Bray Series 30/31 Dimensions sheet
Technical specification
- Design
- Lugged
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel, Stainless Steel 316L
- Liner
- EPDM, NBR (BUNA), FKM Viton
- Main Features
- 2" to 12" Lugged PN16 EPDM, NBR (BUNA) or FKM Liner
