Bray
Bray Series 31 Lugged ANSI 150 Butterfly Valve - Nylon Coated Ductile Iron Disc
SKU BR0231
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bray Series 31
- Ductile Iron body
- Lugged ANSI 150
- Nylon Coated Ductile Iron Disc
- Lever or gearbox operator
- EPDM or NBR (BUNA) Liner
- Sizes: 2" to 12"
Description
Bray's Series 31 Lugged ANSI 150 Ductile Iron Butterfly Valve with Nylon Coated Ductile Iron Discis suitable for a range of general purpose, industrial, marine and HVAC applications, water distribution, water authorities and waste water (subject to configuration).
A resilient seated lugged and tapped butterfly valve featuring an epoxy coated Cast Iron body, Nylon Coated Ductile Iron disc and EPDM or NBR (BUNA) liner.
Bray butterfly valves benefit from high strength through-stem design, allowing easy disassembly of the valve and reduced disc to stem failure.

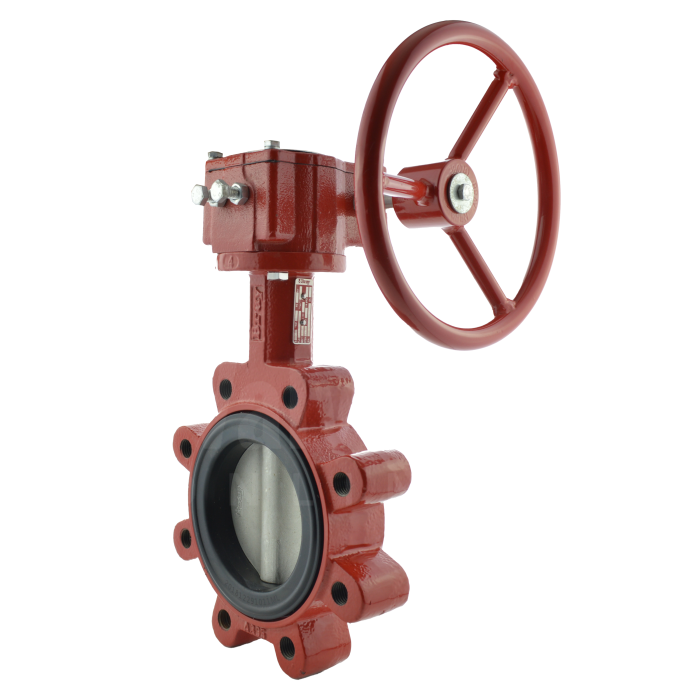

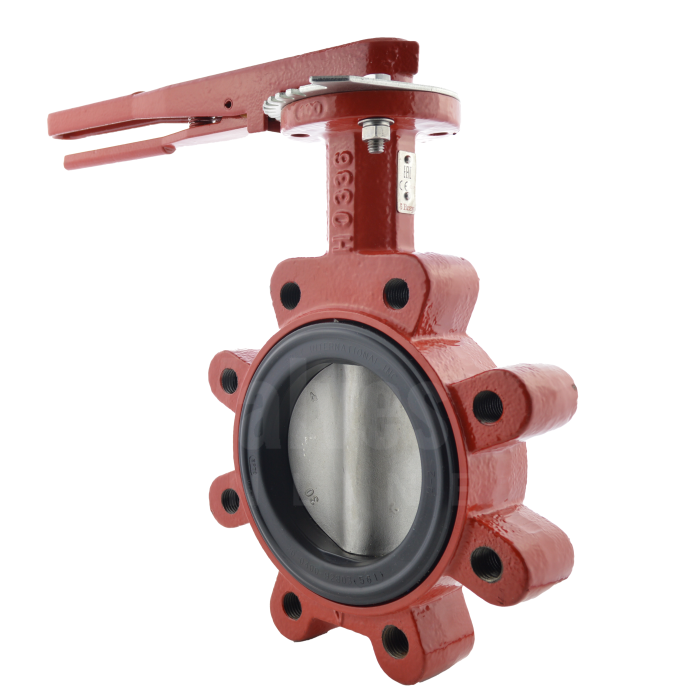

Supplied with either a Trim 007 hand lever or Type S04 hand wheel operated gearbox.
Suitable to fit between ANSI 150 flanges.
For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)
Bray Series 31 Lugged ANSI 150 Ductile Iron Butterfly Valve Datasheet
Bray series 30/31 Dimensions sheet
Technical specification
- Design
- Lugged
- Flange Accommodation
- ANSI 150
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel 316L, Aluminium Bronze, Nylon Coated
- Liner
- EPDM, NBR (BUNA)
- Industry / Approvals
- HVAC, Marine
- Main Features
- 2" to 12" EPDM or NBR (BUNA) Liner Lugged ANSI 150
