Images are illustrative and may not show every size or variation.
Bray

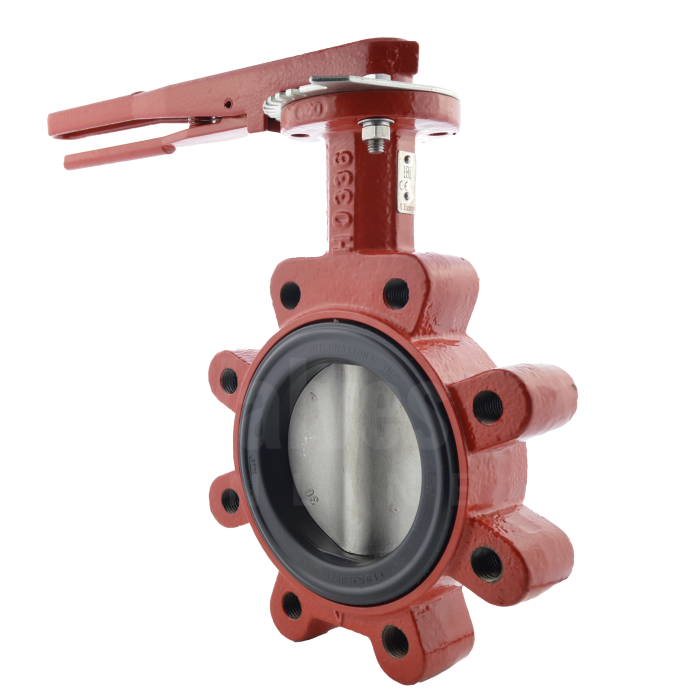

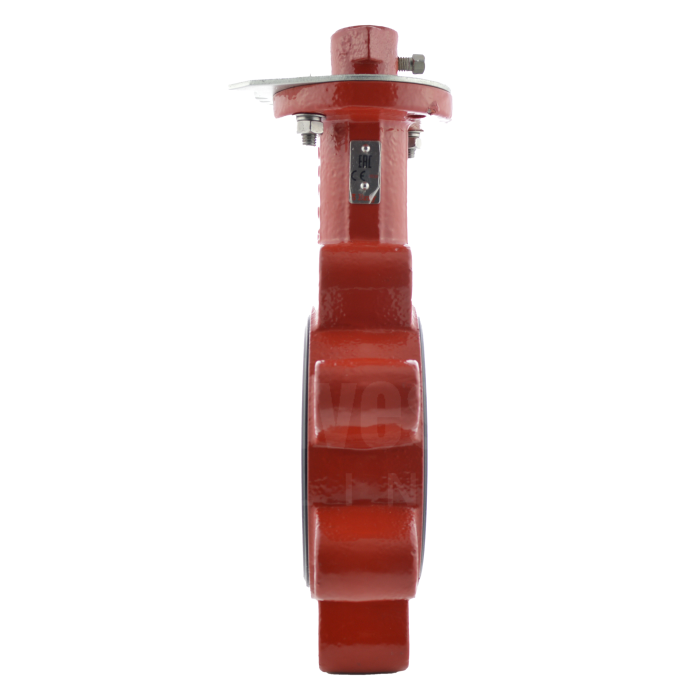

Bray Series 31 Lugged ANSI 150 Butterfly Valve - 316 Stainless Steel Disc
SKU BR1231
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bray Series 31 Butterfly Valve
- Ductile Iron body
- Lugged ANSI 150
- 316 Stainless Steel Disc
- Lever or Gearbox Operator
- EPDM, NBR (BUNA) or FKM liner
- Sizes: 2" to 12"
Description
Bray's Series 31 Lugged ANSI 150 Butterfly Valve with 316 Stainless Steel Disc is suitable for a range of general purpose, industrial, marine and HVAC applications, water distribution, water authorities and waste water (subject to configuration).
A resilient seated lugged and tapped butterfly valve featuring an epoxy coated Cast Iron body, 316 Stainless Steel disc and EPDM, NBR (BUNA) or FKM liner.
Bray butterfly valves benefit from high strength through-stem design, allowing easy disassembly of the valve and reduced disc to stem failure.

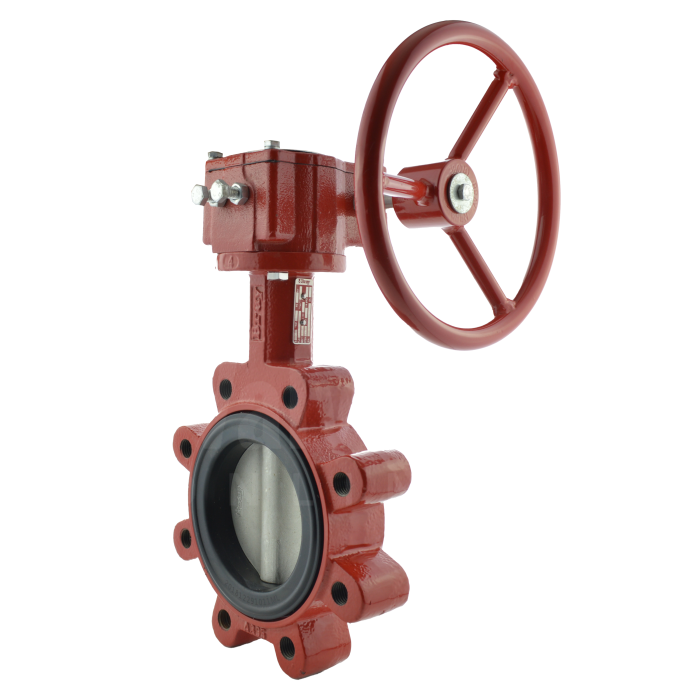

Supplied with either a Trim 007 hand lever or Type S04 hand wheel operated gearbox.
Suitable to fit between ANSI 150 flanges.
For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)
Bray Series 31 Lugged ANSI 150 Butterfly Valve - 316 Stainless Steel Disc Datasheet
Bray series 30/31 Dimensions sheet
Technical specification
- Design
- Lugged
- Flange Accommodation
- ANSI 150
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel, Stainless Steel 316L
- Liner
- EPDM
- Main Features
- 2" to 12" Lugged ANSI 150 EPDM, NBR (BUNA) or FKM Liner
