Images are illustrative and may not show every size or variation.
Bray

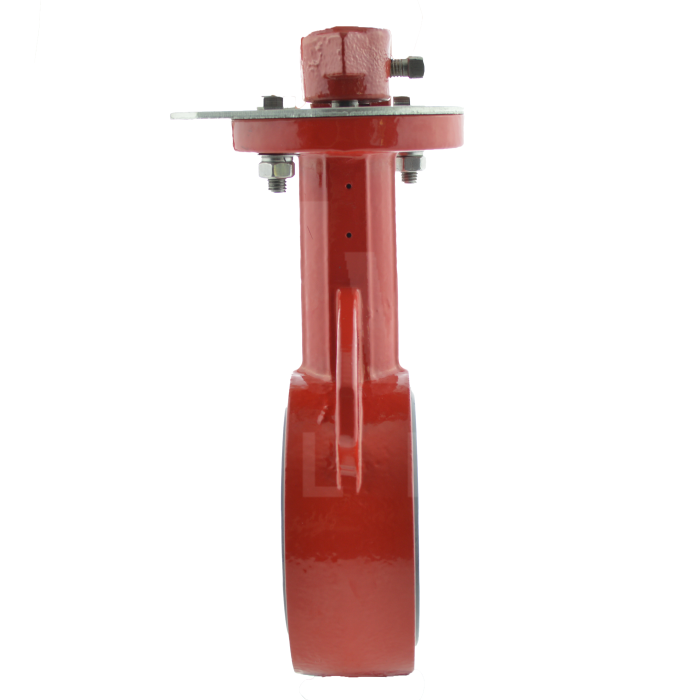

Bray Series 30 Wafer Butterfly Valve - Nylon Coated Ductile Iron Disc
SKU BR0130
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bray Series 30
- Cast Iron body
- Wafer Pattern
- Lever or Gearbox Operator
- Nylon Coated Ductile Iron Disc
- EPDM, NBR (BUNA) or FKM liner
- Sizes: 2" to 12"
- Pressure rating: 12 Bar
Description
Bray's Series 30 Cast Iron Wafer Butterfly Valve is suitable for a range of general purpose, industrial, marine and HVAC applications, water distribution, water authorities and waste water (subject to configuration). A resilient seated wafer and tapped butterfly valve featuring an epoxy coated Cast Iron body, Nylon Coated Ductile Iron disc and EPDM, NBR (BUNA) or FKM liner.
Bray butterfly valves benefit from high strength through-stem design, allowing easy disassembly of the valve and reduced disc to stem failure.

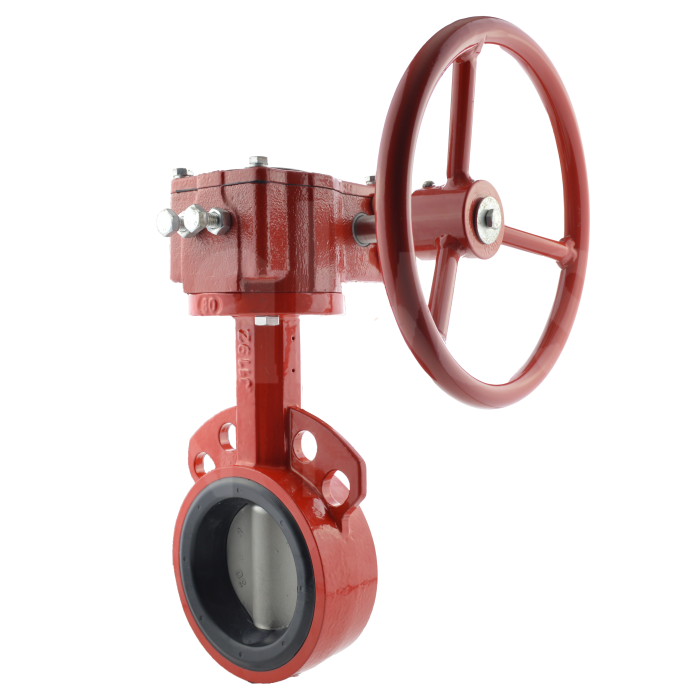

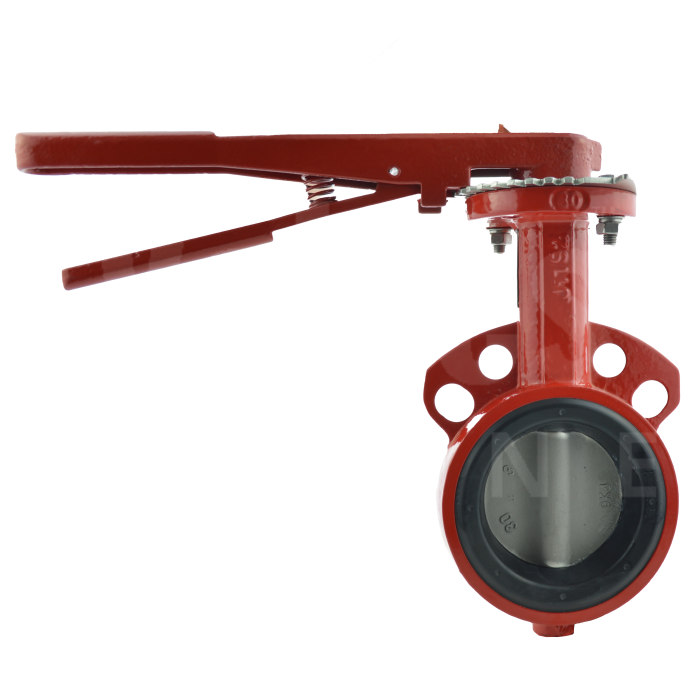

Supplied with either a Trim 007 hand lever or Type S04 hand wheel operated gearbox.
For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)
Download our technical PDF datasheet here
Download the Bray series 30/31 Dimensions sheet
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN16, ANSI 150
- Body Material
- Cast Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Nylon Coated
- Liner
- EPDM, NBR (BUNA), FKM Viton
- Industry / Approvals
- HVAC, Marine
- Main Features
- 2" to 12" EPDM, NBR (BUNA) or FKM Liner 12 Bar Rated
