Bray

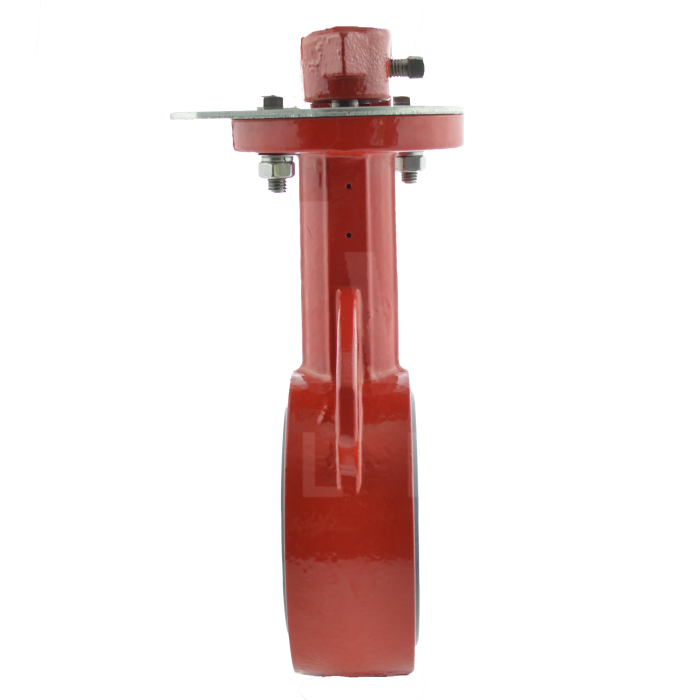

Bray Series 30 Wafer Butterfly Valve - 316 Stainless Steel Disc
SKU BR0330
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Bray Series 30 Butterfly Valve
- 316 Stainless Steel Disc
- Cast Iron body
- Wafer Pattern
- Lever or Gearbox Operator
- EPDM, NBR (BUNA) or FKM liner
- Sizes: 2" to 12"
- Pressure rating: 12 Bar
Description
Bray Series 30 butterfly valve with stainless steel disc is a resilient seated wafer pattern butterfly valve featuring an epoxy coated Cast Iron body, 316 Stainless Steel disc and EPDM, NBR (BUNA) or FKM liner.
Bray butterfly valves benefit from high strength through-stem design, allowing easy disassembly of the valve and reduced disc to stem failure.

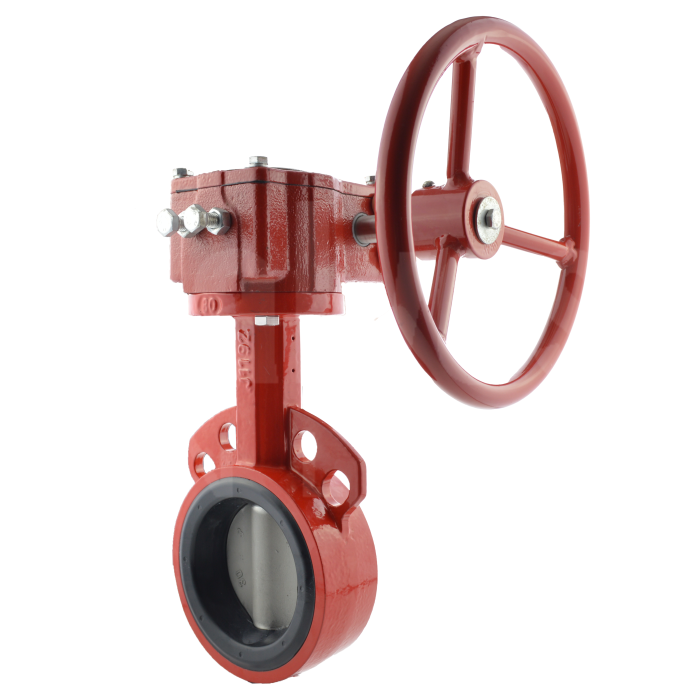

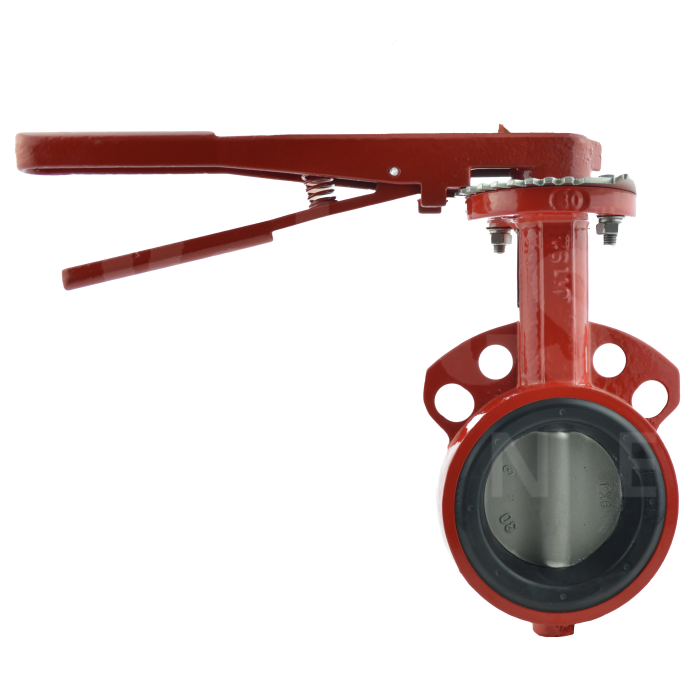

Supplied with either a Trim 007 hand lever or Type S04 hand wheel operated gearbox.
For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)
Download our technical PDF datasheet here
Download the Bray series 30/31 Dimensions sheet
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN16, ANSI 150
- Body Material
- Cast Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel 316L
- Liner
- EPDM, NBR (BUNA), FKM Viton
- Main Features
- 2" to 12" EPDM, NBR (BUNA) or FKM liner Up to 12 Bar Rated
