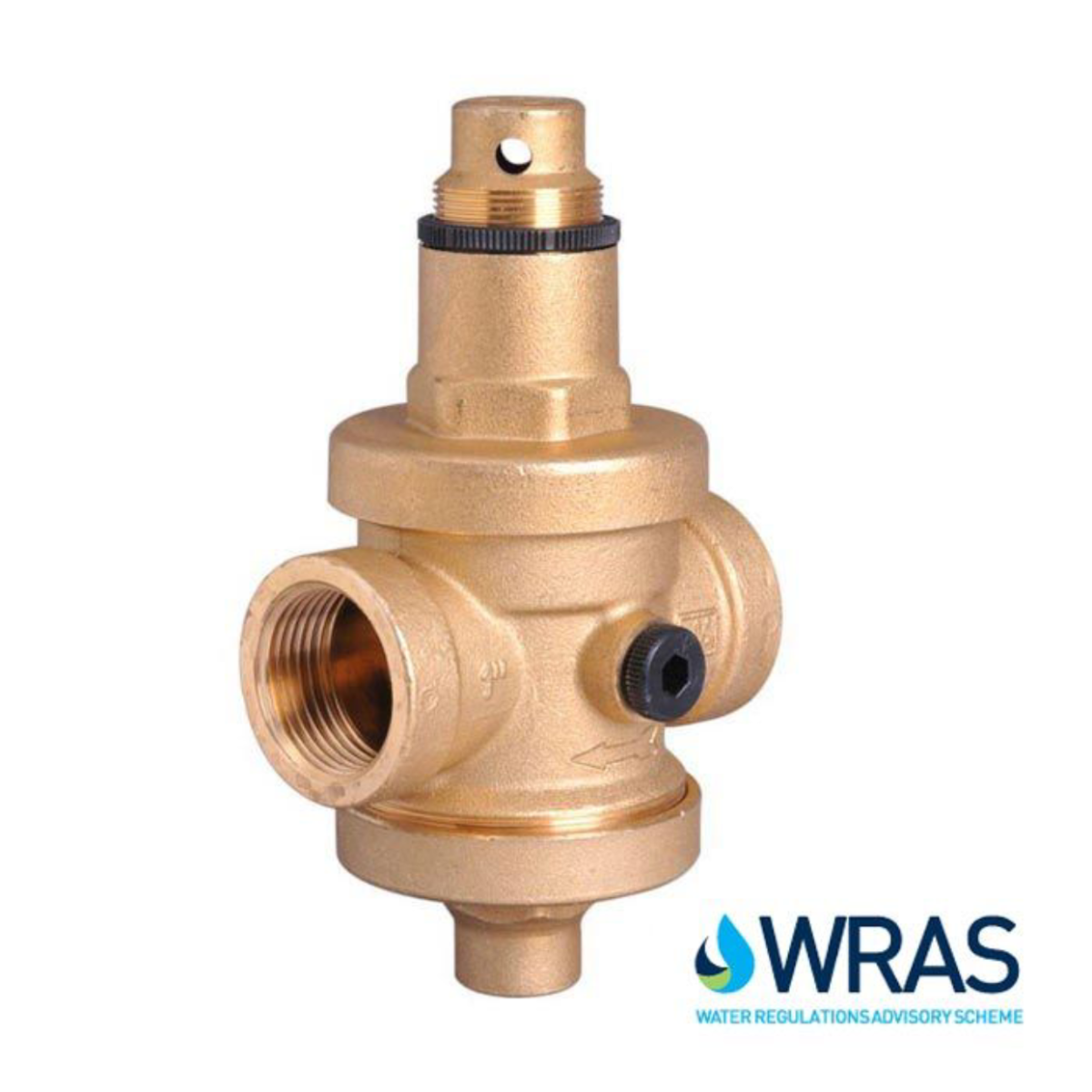

Brass Pressure Reducing Valve
SKU PR4304
from£49.25ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 22mm
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pressure Reducing Valve
- Brass body
- Union, Screwed and Compression End connections
- Sizes: 1/2" to 2" and 22mm
- Maximum outlet pressure of 0.5 to 6 Bar
- WRAS approval on Screwed version only
Description

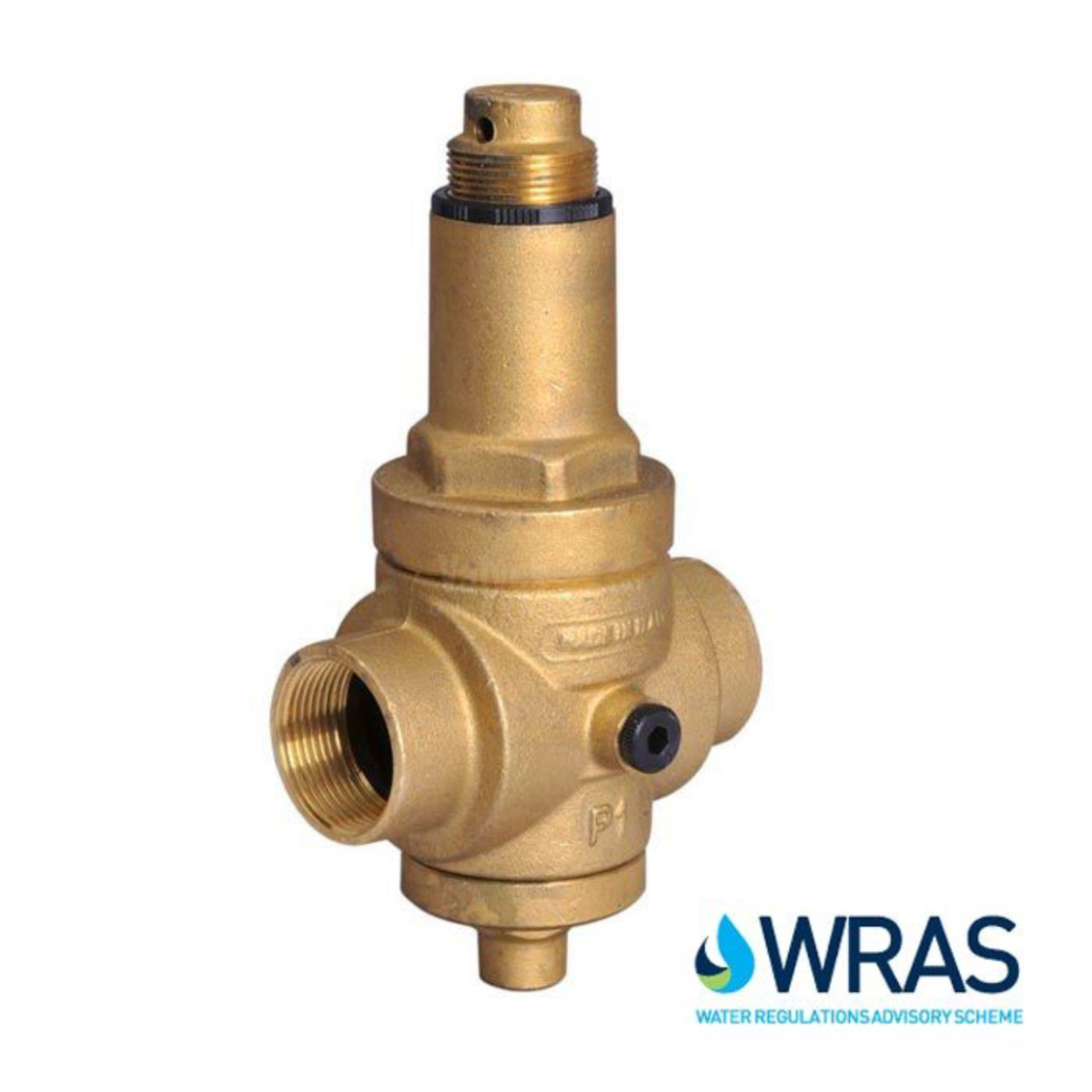

Our Brass Pressure Reducing Valve is suitable for reducing pressure in industrial applications; oil and water up to 80° C. A manual 'Tommy bar' operated pressure reducing valve with Brass body, stem and Stainless Steel seat. Screwed 1/2" to 2" valve benefits from being WRAS approved.

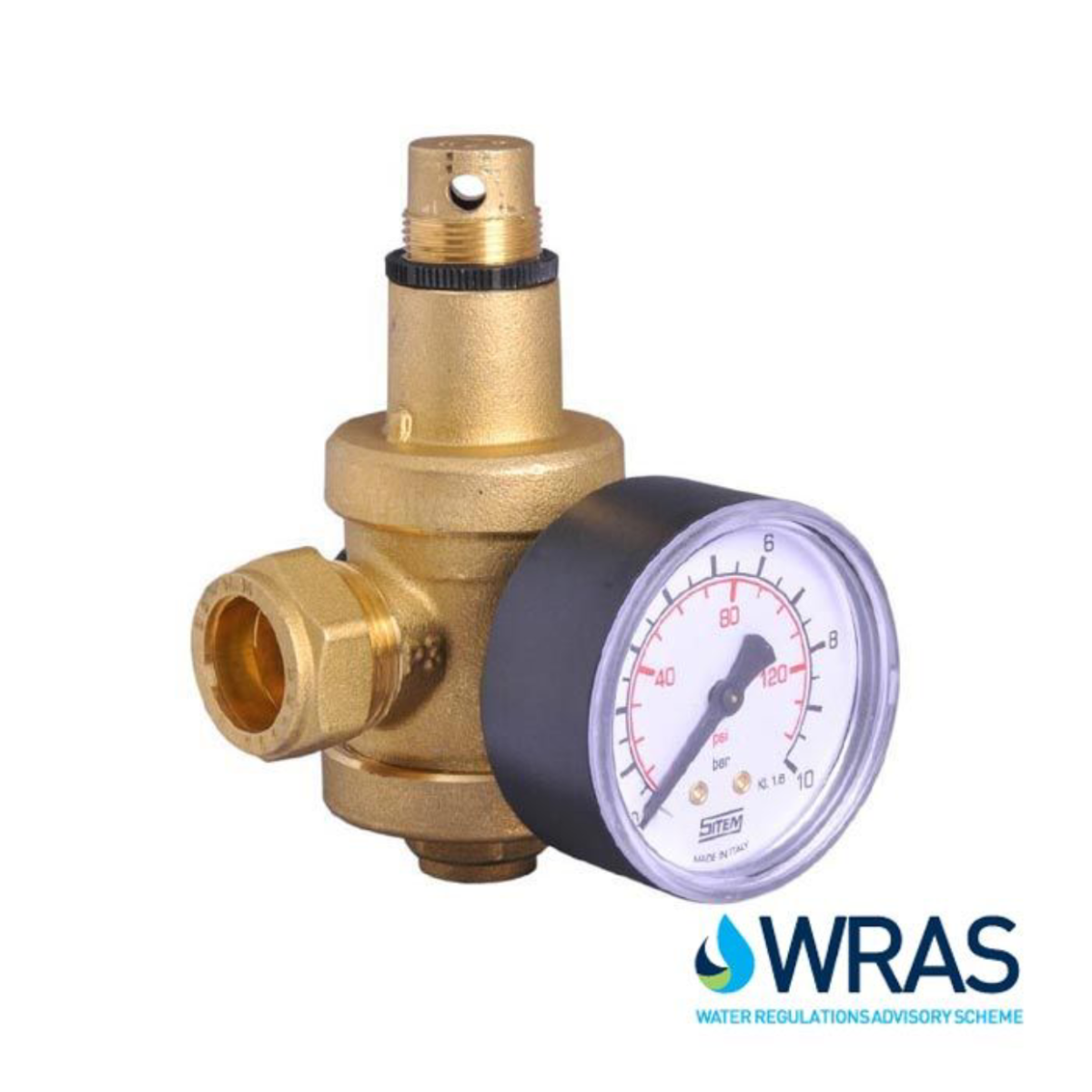

Compression End 22mm valve comes supplied with gauge.
Maximum outlet pressure of 0.5 to 6 Bar.
Tommy bar operator NOT supplied.
Technical specification
- Media
- Liquid / Water
- Adjustment Range
- 0.5 - 6 bar
- Body Material
- Brass
- End Connection
- BSP, Compression End, Union End
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 22mm
- Industry / Approvals
- WRAS, HVAC
