ADCA

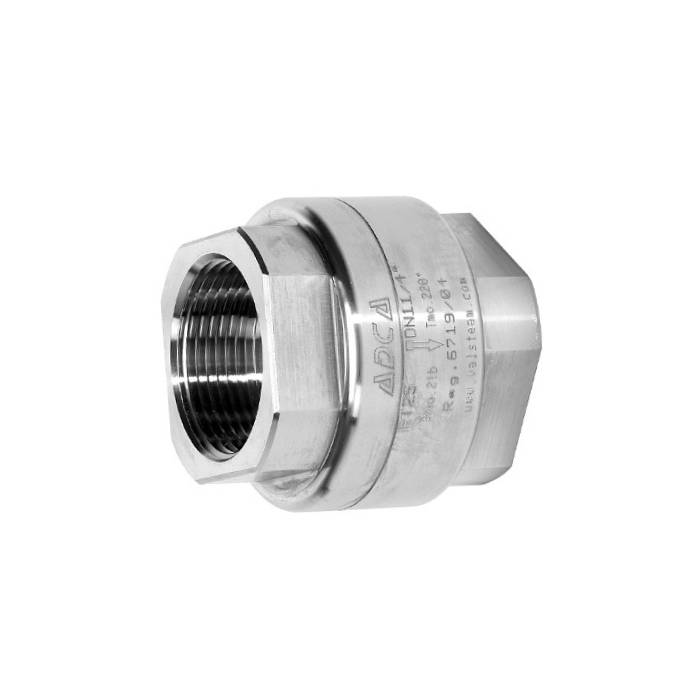

ADCA RT25 High Temperature Check Valve Screwed BSP
SKU CV4676
from£149.85ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- ADCA RT25
- Disc Check Valve
- Stainless Steel body
- Metal to Metal seated
- Screwed BSP
- Sizes 1/4" to 2"
- Temperature up to 250°C
- Suitable for use with steam and hot condensate
Description
Our High Temperature Check Valve Screwed BSP is designed for use with steam and hot condensate. An all Stainless Steel disc check valve available in Screwed connection for use on saturated steam, water and other gases (Group 2) that are compatible with the construction method.
Benefits include a simple, compact design and low pressure drop.
Can be installed horizontally or vertically within the pipe.
High Temperature Check Valve Screwed BSP Datasheet
Technical specification
- End Connection
- BSP
- Design / Type
- Disc Check, High Temperature
- Industry / Approvals
- High Temperature
- Body Material
- Stainless Steel
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Main Features
- 1/4" to 2" Up to PN32 Rated Up to 250°C
